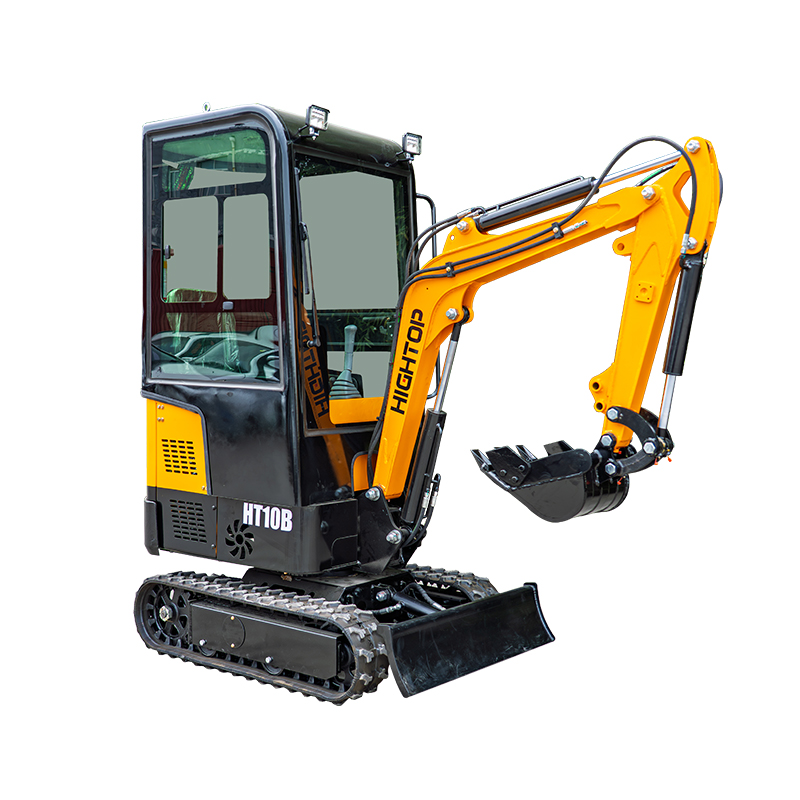

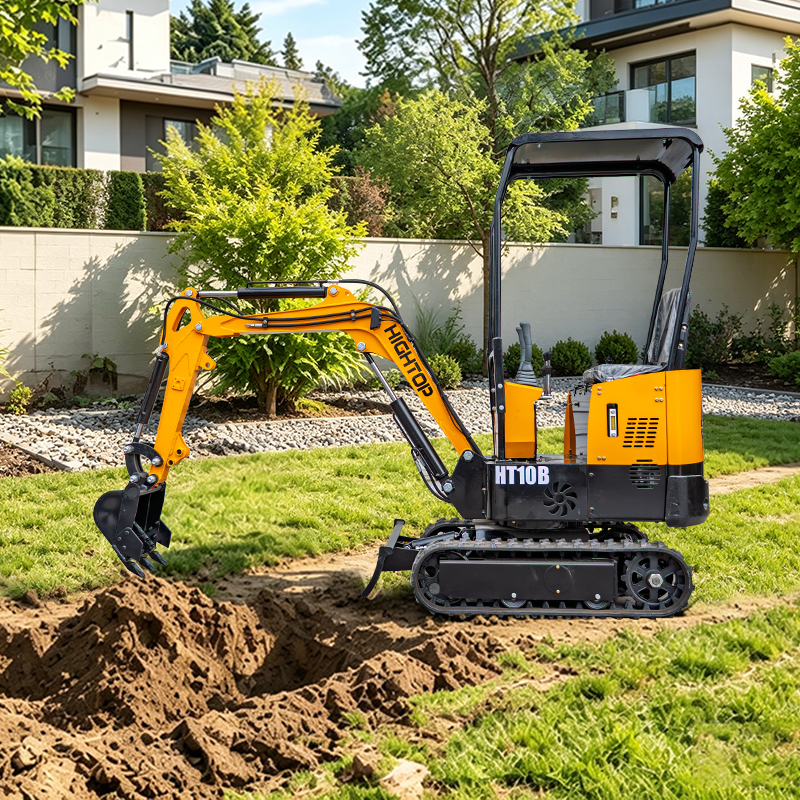

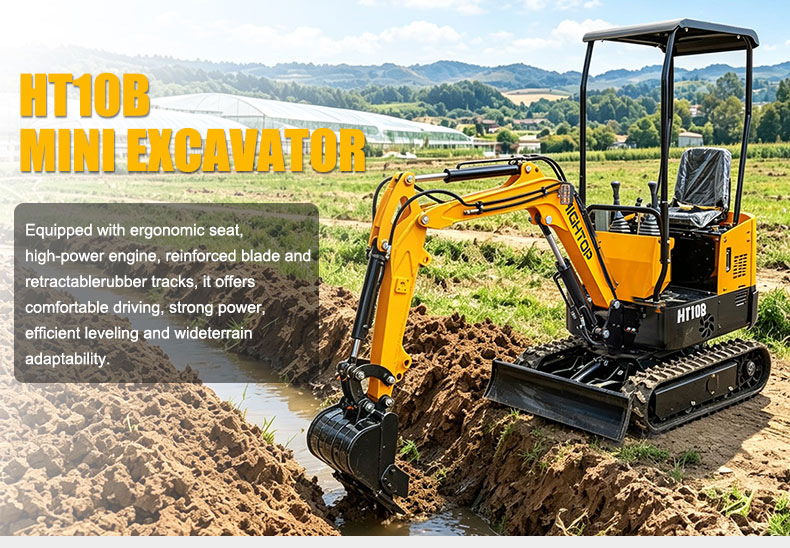

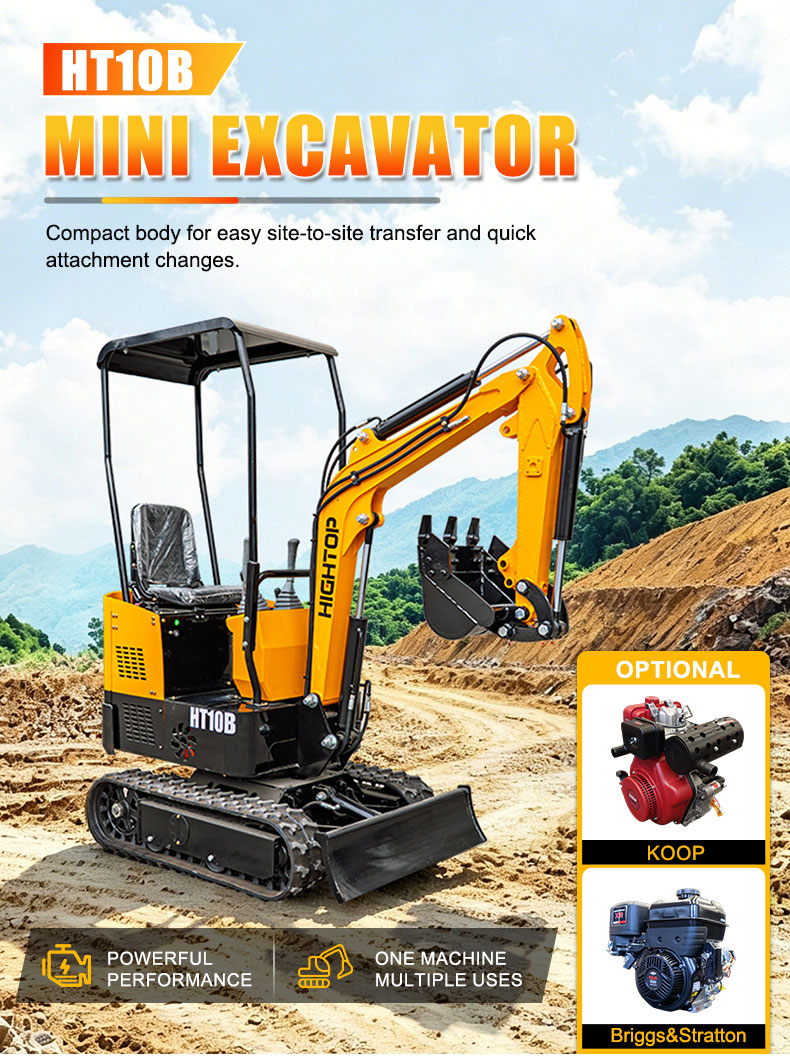

The HT10B is a 1-ton crawler-type mini excavator developed by Shandong HIGHTOP, specifically engineered for operations in confined spaces. As part of the small and lightweight construction machinery category, it excels in various applications including gardens, farmlands, old house renovations, indoor demolition, and small trench excavation. This model meets international standards with CE, Euro5, and EPA emission certifications for export.
|

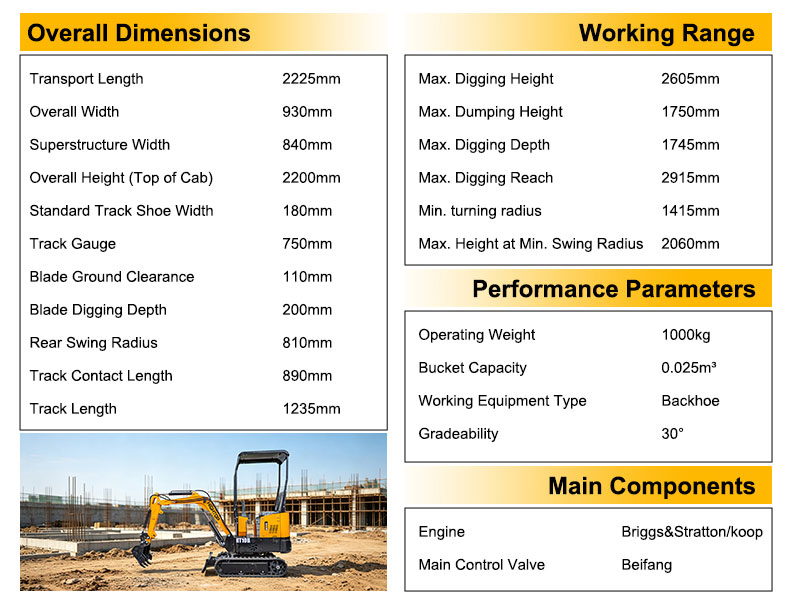

HT10B Micro Excavation Parameter Table |
|
|

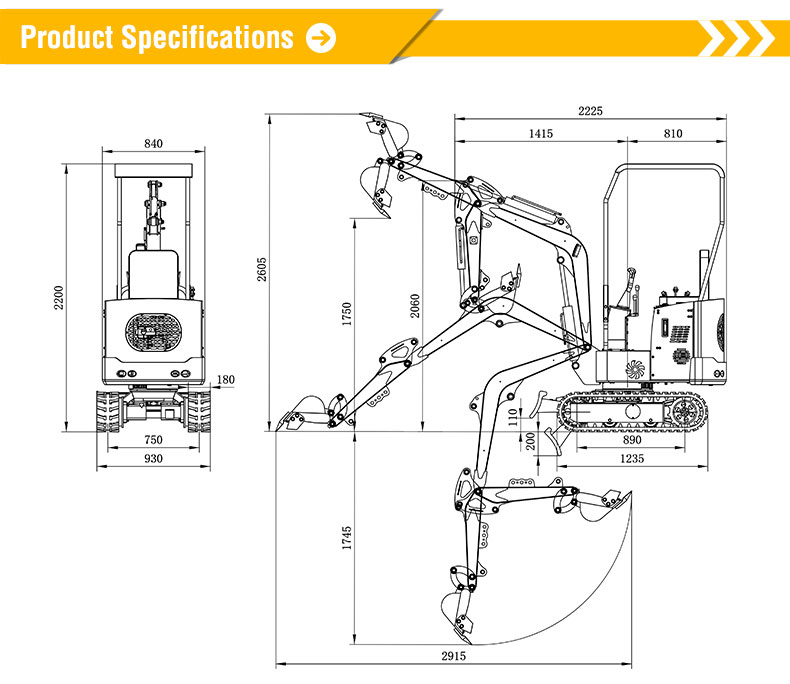

Overall machine dimensions (in mm) |
|
|
Transport length A |
2225 |
|
Total width B |
930 |
|
Upper width D |
840 |
|
Total height (driver's cab roof) C |
2200 |
|
Standard track plate width F |
180 |
|
Track gauge E |
750 |
|
Height of the bulldozer blade above the ground G |
110 |
|
The bulldozer digs to a depth of H. |
200 |
|

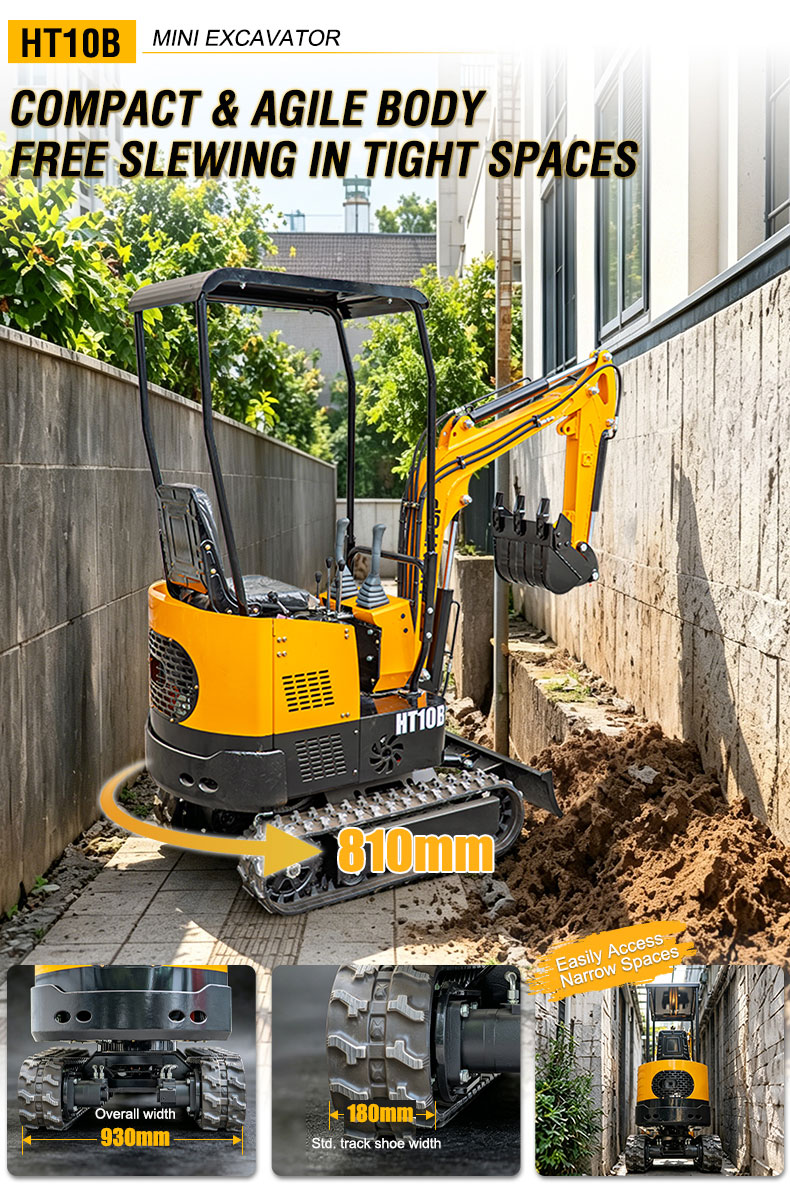

Tail turning radius I |
810 |
|
Track contact length J |
890 |
|
Track length K |
1235 |
|
Work range (unit: mm) |
|
|

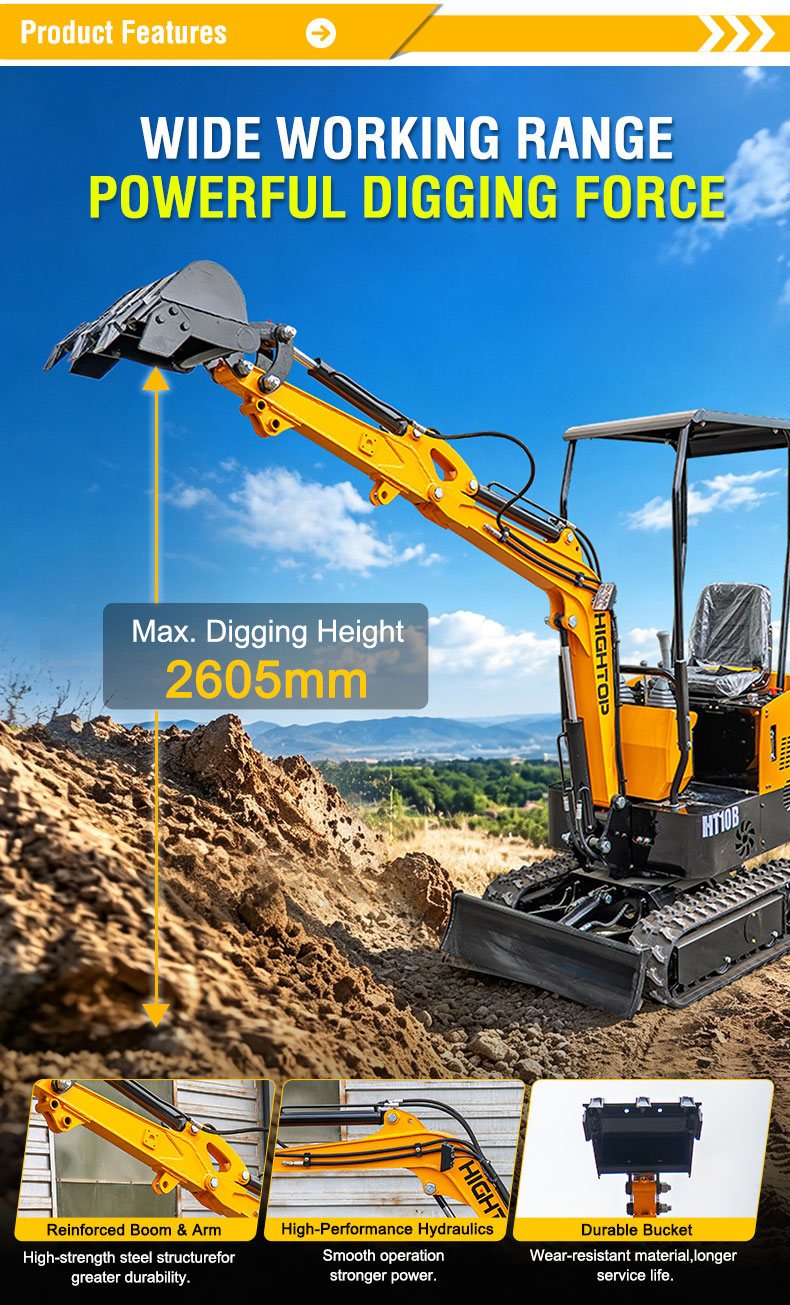

Maximum excavation height a |
2605 |
|
Maximum unloading height b |
1750 |
|
Maximum excavation depth c |
1745 |
|
Maximum excavation distance d |
2915 |
|
Minimum turning radius e |
1415 |
|
The maximum height at the minimum turning radius f |
2060 |
|
Performance parameters |
|
|
Work Quality (KG) |
800 |
|
Volume capacity M^3 |
0.02 |
|
Working device form |
Backhoe |
|

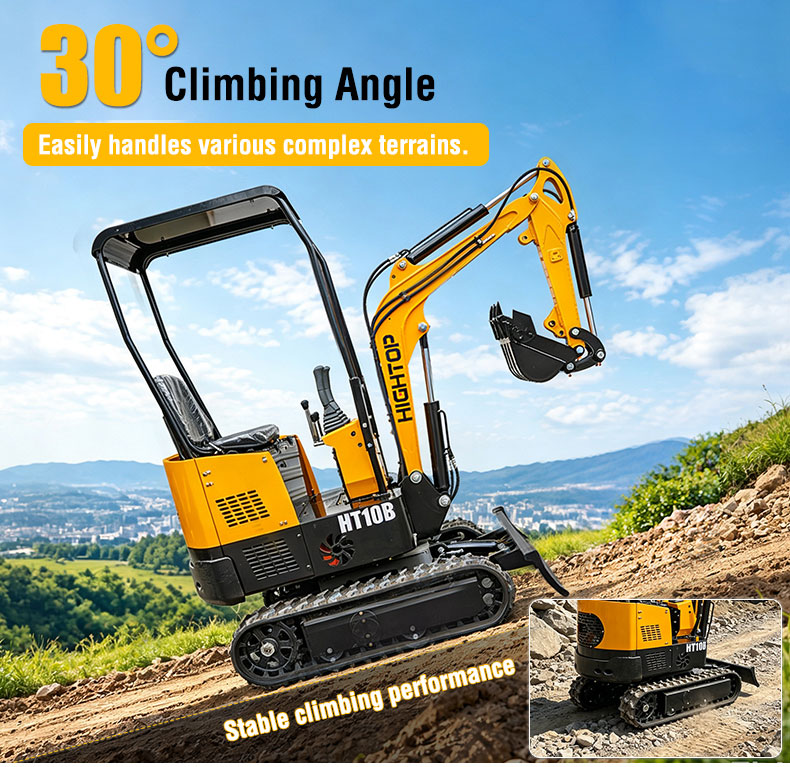

Climbing ability |
30 degrees |
