Laidong engine 18.4kw, Retractable shoes, Boom swing, Tailless rotation.

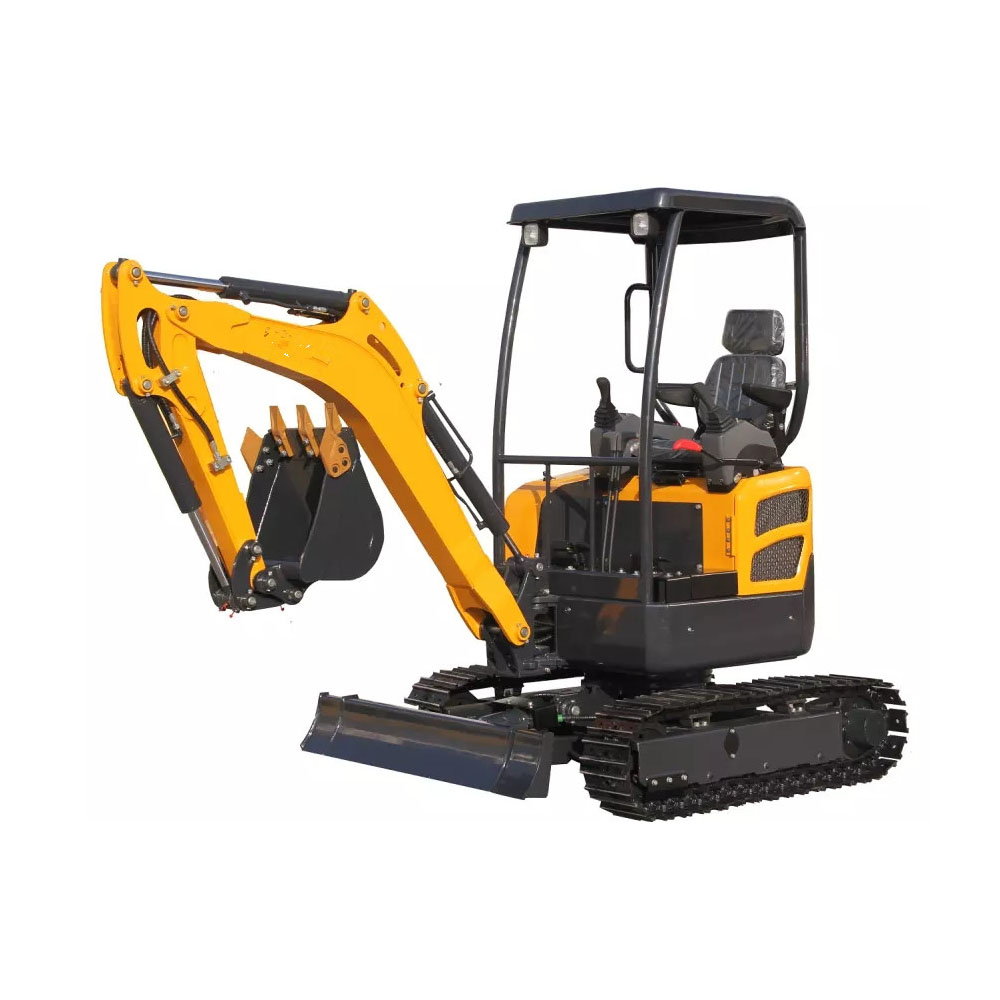

The crawler excavator is a compact excavator ,which matched KUBOTA national III engine , the boom ofexcavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system,with steel track, with broken pipeline system , the machine can change track from steel to rubber. Cantelescoping the track frame. Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
1-Japan KUBOTA engine , 14.1kw, Euro 5/EPA
2-China brand pump
3-China brand valves
4-EATON brand slewing motor
5-EATON brand driving motor
6-Open cabin(Canopy)
7-Hydraulic pilot servo operation system
8-Rubber track :230mm
9-With broken pipeline system
10- Bucket capacity: 0.07m³
|
Machine Size |
|
|
Overall dimension (L*W*H) |
3555mm*1300mm*2290mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
760mm |
|
Min.Ground clearance |
150mm |
|
Swing radius at tail |
650mm |
|
Track System |
|
|
Maximum Travel speed |
4km/h |
|
Width of track shoe |
230mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
1 |
|
Number of bottom roller per side |
3 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.07m³ |
|
Swing speed |
9rpm |
|
Max. Grade ability |
35° |
|
Max. Bucket digging force |
18KN |
|
Max. Arm digging force |
11KN |
|
Hydraulic system pressure |
21.5Mpa |
|
Machine weight |
2000kg |
|
Engine |
|
|
Emission Standard |
Euro 5/EPA |
|
Engine Brand |
Kubota |
|
Model |
D1105 |
|
Power/Rotation speed |
14.1kw(20HP) 2000rpm |
|
Number of cylinder |
3 |
|
Working Range |
|
|
Max. Digging height |
3700mm |
|
Max. Dumping height |
2440mm |
|
Max. Digging depth |
2400mm |
|
Max. Vertical digging depth |
2025mm |
|
Max. Digging radius |
4040mm |
|
Min .swing radius |
1610mm |
|
Max. Lifting height of blade |
240mm |
|
Max. Cutting depth of blade |
270mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
|
Accessories One Machine, multi-usage.Quick and easy replacement of accessories |

|
