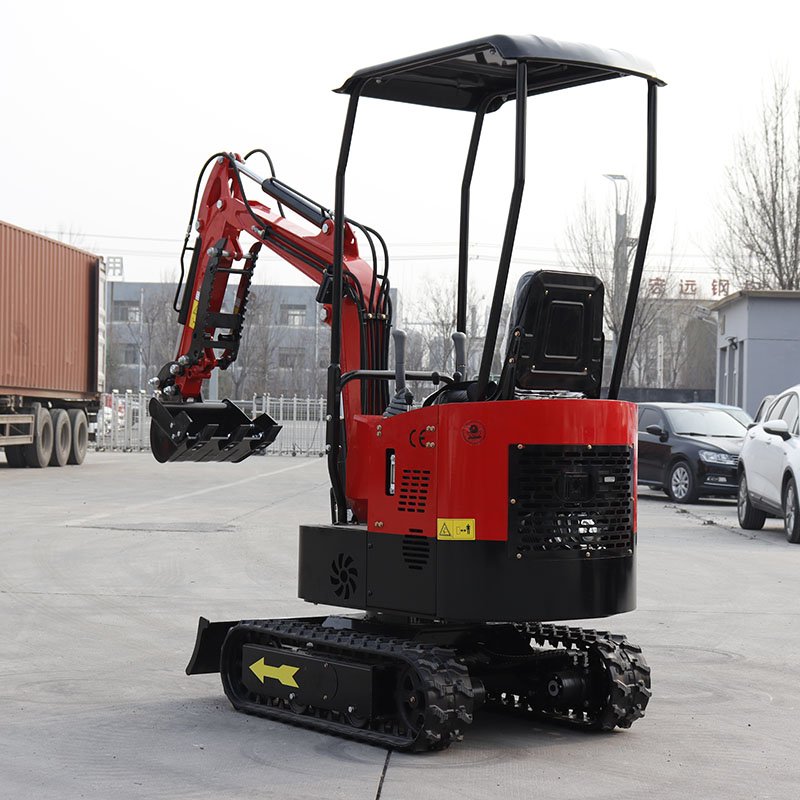

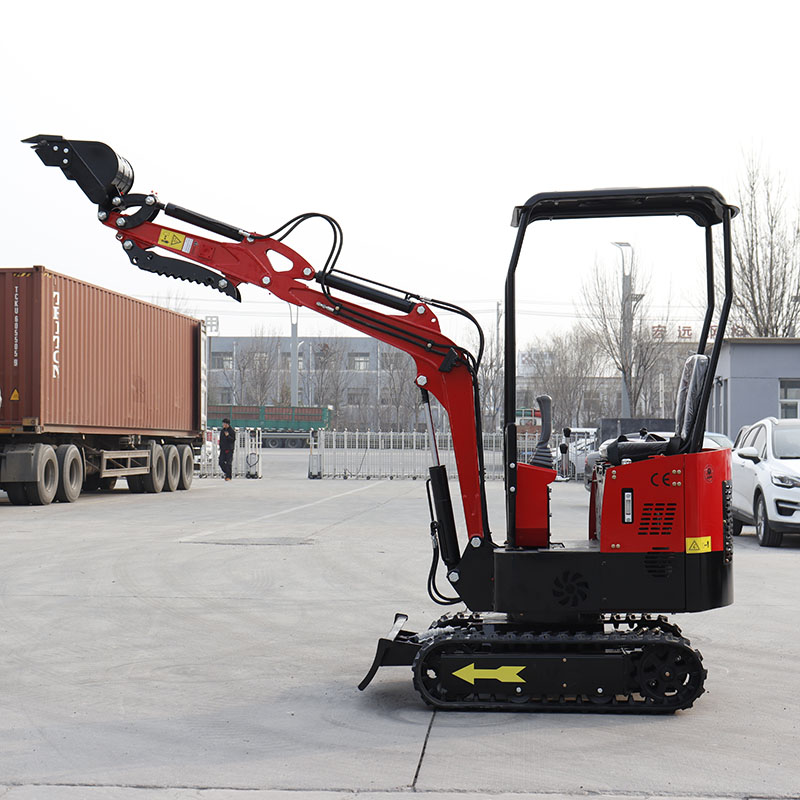

MG-10H Mini Excavator
|
Model:MG-10H |
|||
|
Weight |
1000kg |
Platform ground clearance |
380 mm |
|
Digging bucket capacity |
0.025cbm/120kg |
Platform back turning radius |
784 mm |
|
Bucket width |
380mm |
Chassis width |
896 mm |
|
Engine |
Koop Engine 192F |
Track width |
180 mm |
|
Optional Engine |
RATO Engine,Yoop,Koop Engine,Changchai |
Chassis ground clearance |
320 mm |
|
|
BRIGGS & STRATTON Engine |
Track height |
132 mm |
|
Bore stroke |
Single cylinder, fan cool |
Max. Digging depth |
1750 mm |
|
Rated power |
7kw/3000r/min |
Max. Vertical digging depth |
1550 mm |
|
Displacement |
6.8ml/r |
Max. Digging height |
2610 mm |
|
Travel speed |
1.5km/h |
Max. Dumping height |
1850 mm |
|
Overll dimension( LxWxH) |
2900 x 930 x 2180 mm |
Max. Digging radius on ground |
3050 mm |
|
Wheelbase |
910 mm |
Min. Rotation radius |
1330 mm |
|
Total length of track |
1230mm |
Max. Upgrade height of bulldozer blade |
345 mm |
|
Platform ground clearance |
380 mm
|
Max. Digging depth of bulldozer blade |
255 mm |
