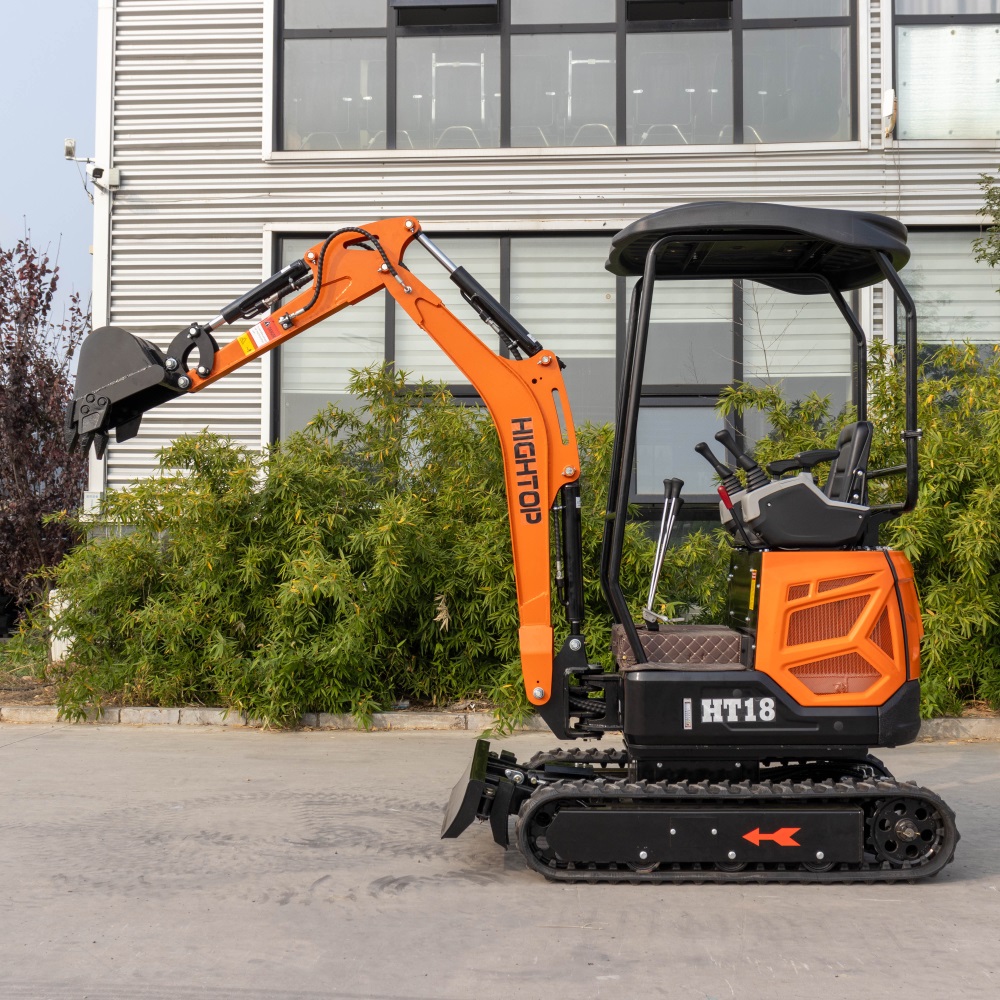

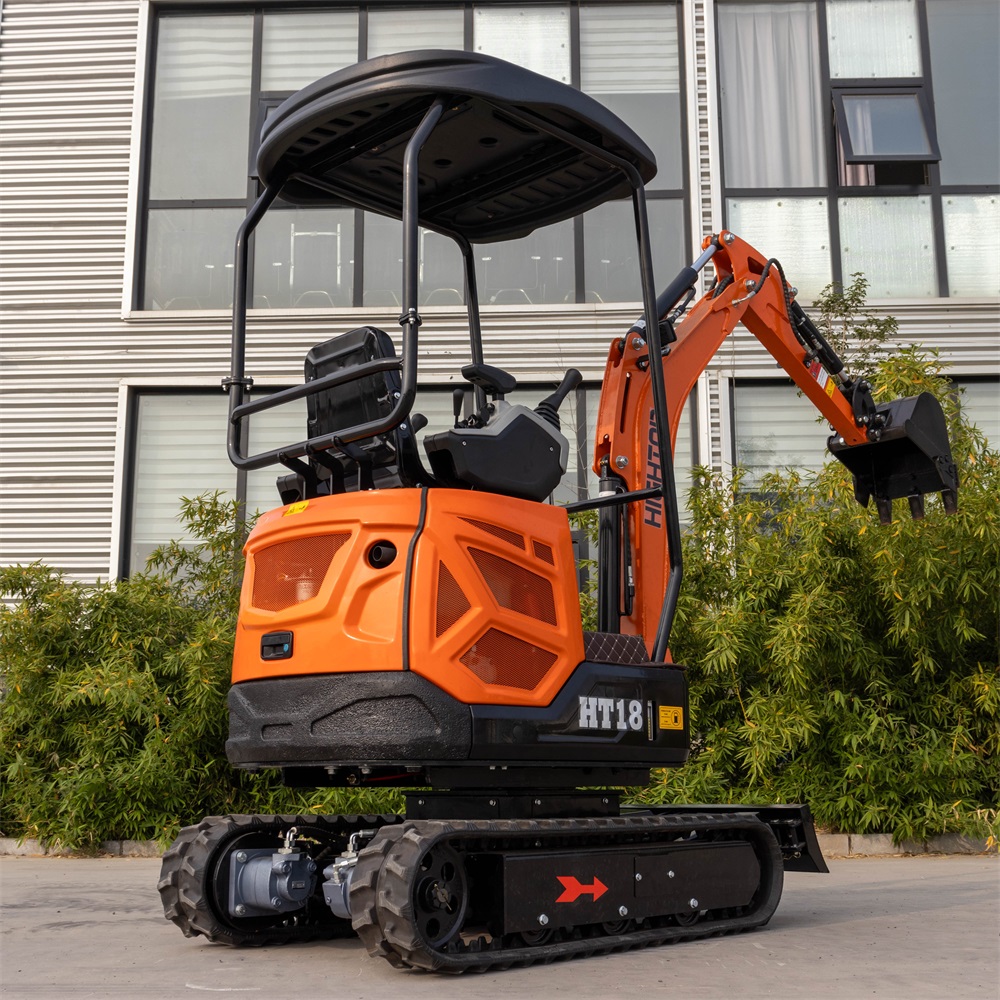

MG-Y18 Mini Excavator

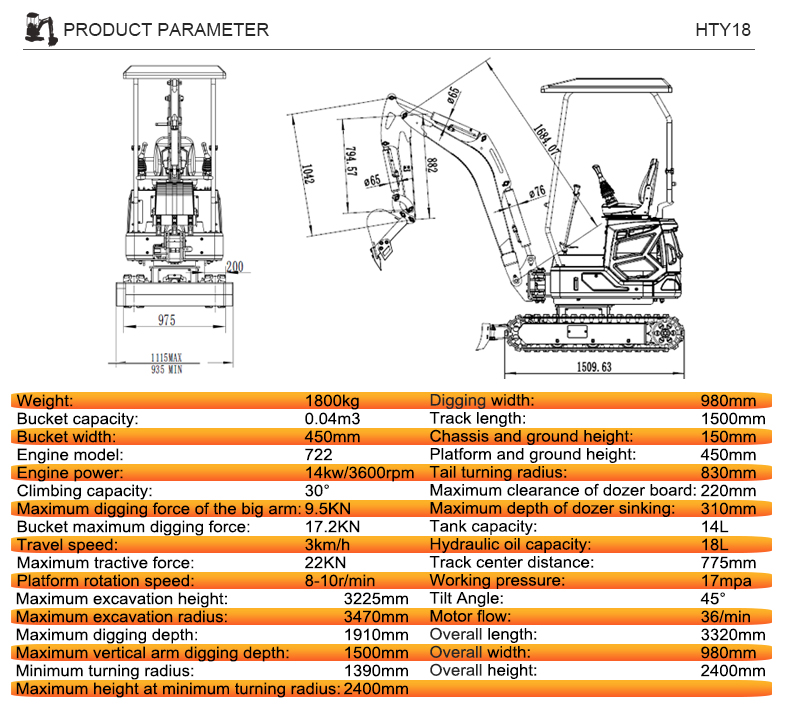

Basic Parameters
Machine weight: 1800kg
Bucket capacity: 0.04m³
Bucket width: 450mm
Performance Parameters

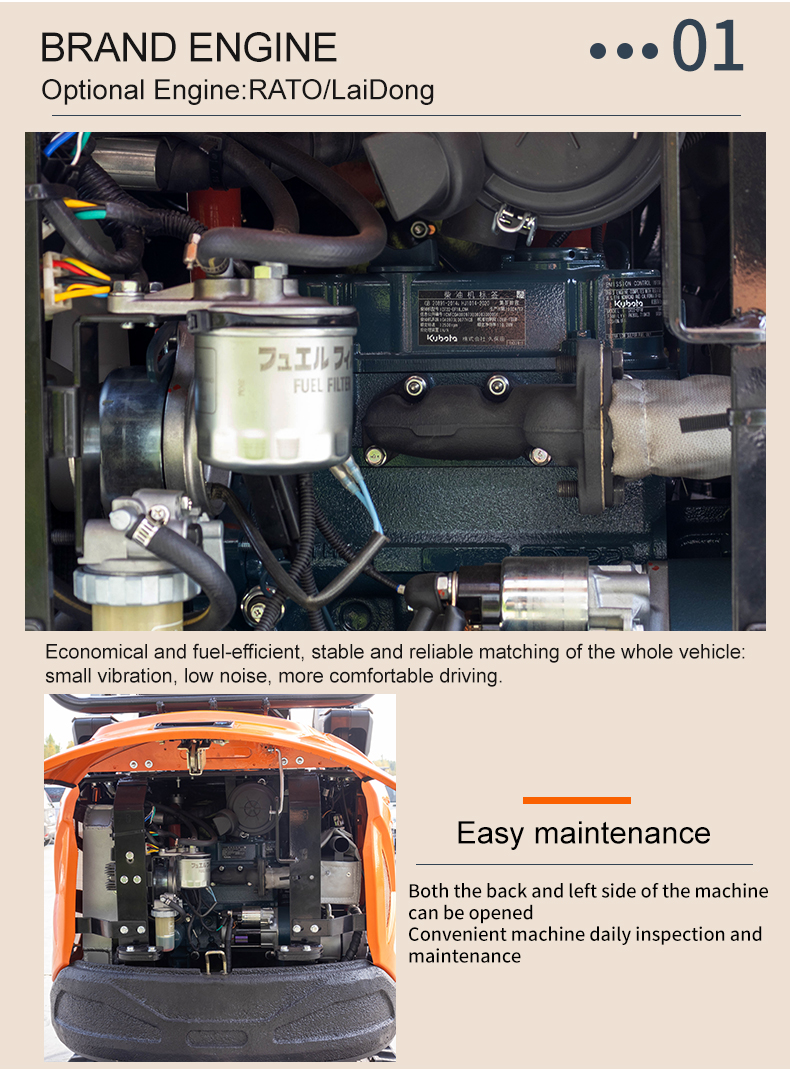

Engine Model: Kubota 722
Engine power: 14kw/3600rpm
Climbing ability: 30°
Maximum digging force of boom: 9.5KN
Bucket maximum digging force: 17.2KN
Traveling speed: 3km/h
Maximum traction force: 22KN
Platform rotary speed: 8-10 r/min
Working Parameter
Maximum digging height: 3225mm
Maximum digging radius: 3470mm
Maximum digging depth: 1910mm
Max. digging depth of vertical arm: 1500mm
Minimum turning radius: 1390mm
Maximum height at minimum turning radius: 2400mm
Transportation Dimension
Overall length: 3320mm

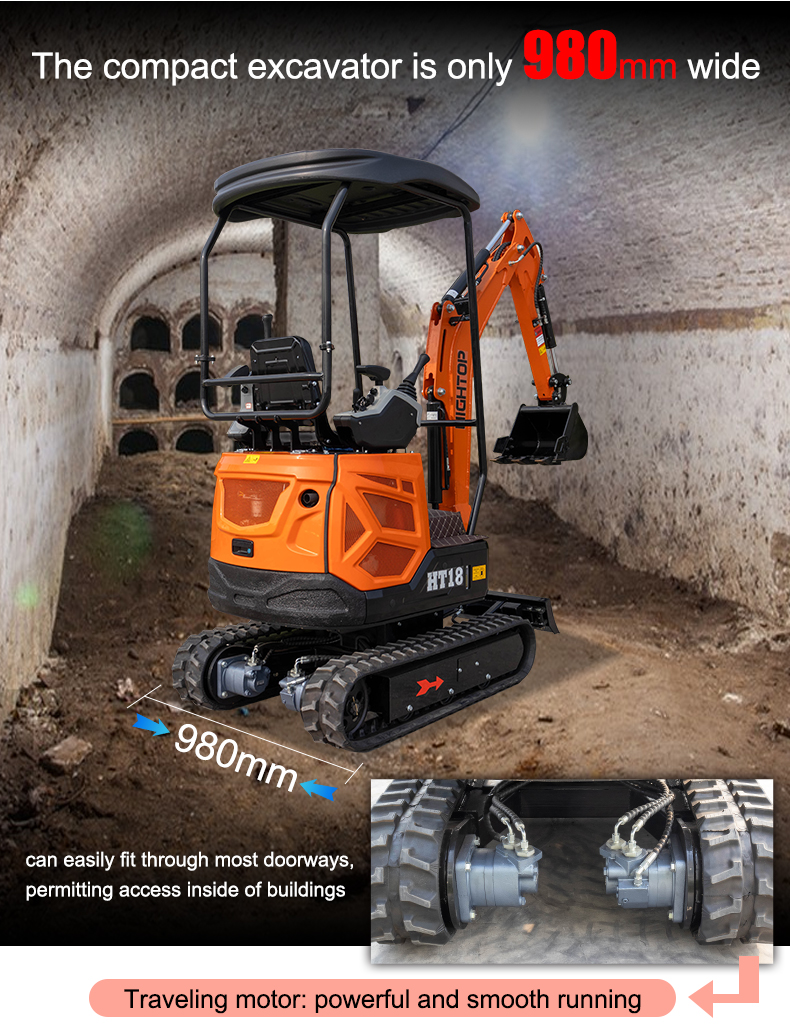

Total width: 980mm
Total height: 2400mm
Others
Chassis width: 980mm
Length of track: 1500mm
Height between chassis and ground: 150mm
Height between platform and ground: 450mm
Tail turning radius: 830mm
Maximum ground clearance for lifting up the bulldozer: 220mm
Maximum Depth of Sinking of Bulldozer: 310mm
Water tank capacity: 14L
Hydraulic oil capacity: 18L
Rail center distance: 775mm
Working pressure: 17mpa

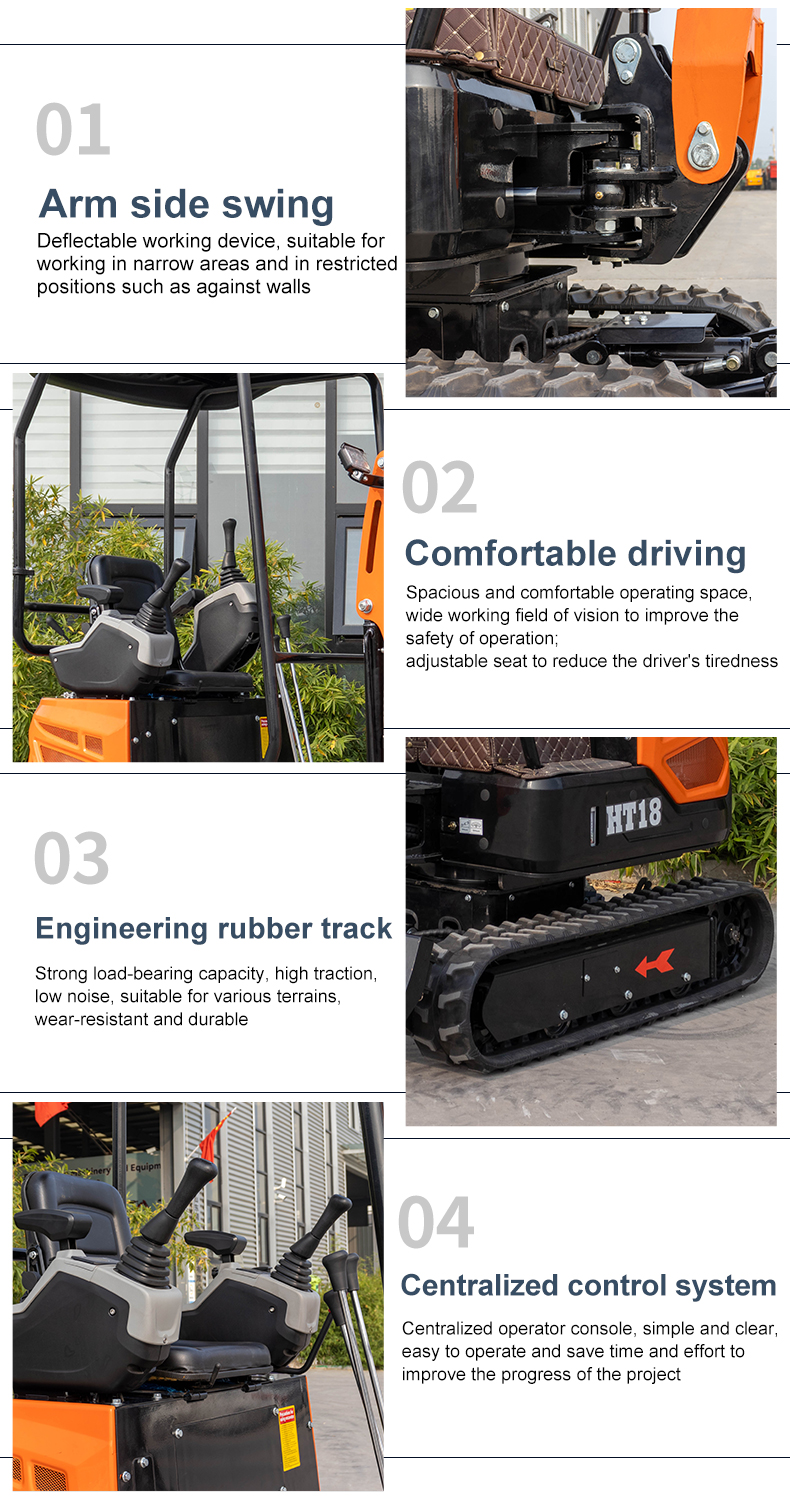

Swing angle: 45 ° left and right
Motor flow: 36L/min
