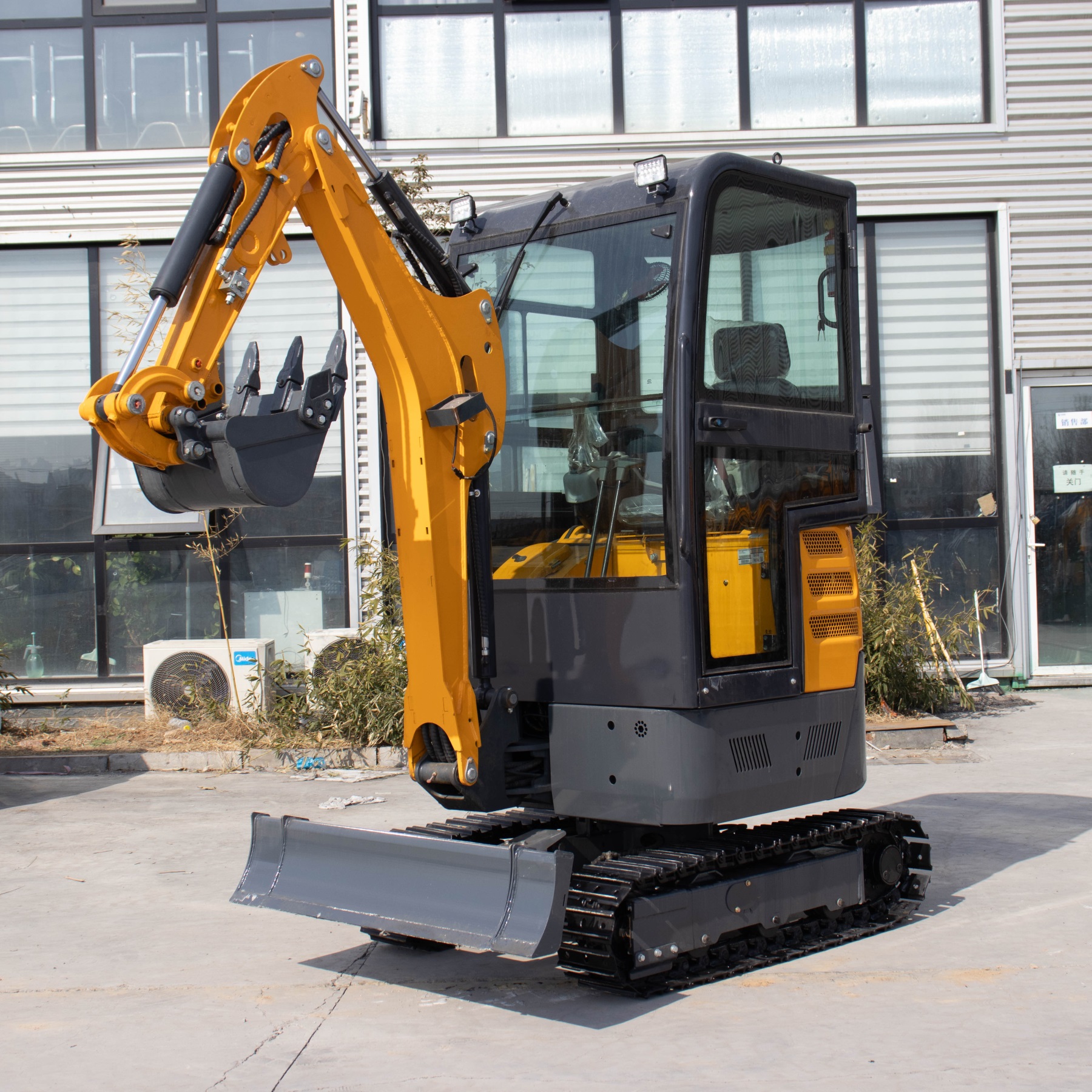

The 1.5-2ton agricultural mini excavator in the excavator is simple in operation and reliable in quality. It is also designed by itself.
The 1.5-2ton agricultural mini excavator in the excavator is simple in operation and reliable in quality. It is also designed by itself. The surface is sprayed, the appearance is beautiful, the working radius is small, and it can work in a small area. A wide range of operations, such as rotary drilling, breakers, loading buckets, grippers and other accessories.
Mini excavator suitable for agricultural orchards, greenhouses, etc. It is also suitable for indoor damage, basement and other places. It has the characteristics of easy operation, low maintenance cost and good equipment stability.
|
Machine Size |
|
|
Overall dimension (L*W*H) |
4170mm*1300mm*2280mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
1070mm |
|
Min.Ground clearance |
230mm |
|
Swing radius at tail |
1180mm |
|
Track System |
|
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe |
230mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
0 |
|
Number of bottom roller per side |
4 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.1m³ |
|
Swing speed |
12rpm |
|
Max. Grade ability |
30° |
|
Max. Bucket digging force |
15.3KN |
|
Max. Arm digging force |
10.5KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
2200kg |
|
Arm length |
1000mm |
|
Engine |
|
|
Engine Model |
Laidong 3TE30 |
|
Emission Standard |
Euro 5 |
|
Power/Rotation speed |
18.4kw(25HP)2000rmp |
|
Number of cylinder |
3 |
|
Working Range |
|
|
Max. Digging height |
3700mm |
|
Max. Dumping height |
2290mm |
|
Max. Digging depth |
2450mm |
|
Max. Vertical digging depth |
2160mm |
|
Max. Digging radius |
4370mm |
|
Min .swing radius |
2020mm |
|
Max. Lifting height of blade |
240mm |
|
Max. Cutting depth of blade |
310mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
