MG15pro Mini Excavator

The exterior of MG15pro excavator is shaped by stamping mold, which is more accurate than traditional outer cover welding, and the outer cover is more beautiful.

MG15pro Mini Excavator Description

MG15pro Mini Excavator Instruction

The exterior of MG15pro excavator is shaped by stamping mold, which is more accurate than traditional outer cover welding, and the outer cover is more beautiful.

The two side handles are equipped with hydraulic pilot operation as standard, so that the customer can coordinate and smooth movement in driving work.

The roof of the carport is made of plastic mold, and the legs of the carport are made of 38 thickened steel tubes. The role of the carport is not only to keep out the light and rain, but also to protect the driver's safety when the vehicle overturns.


MG15pro Mini Excavator Parameter


Transportation length 2300mm
Total width 930mm
Upper width 990mm
Overall height (cab roof) 2270mm
Standard track plate width 180mm
Track gauge 750mm
Shovel height above ground 110mm
Depth of excavation of bulldozer 200mm
Tail turning radius 800mm
Track ground length 890mm
Track length 1235mm

Maximum digging height 2690mm
Maximum unloading height 1825mm
Maximum digging depth 1710mm
Maximum digging distance 2920mm
Minimum turning radius 1500mm
Maximum height at minimum turning radius 2110mm

Working quality 1000kg
Bucket capacity 0.02m3
Working device form 反铲 backhoe
Climbing capacity 30°

Engine
Koop Engine/BRIGGS & STRATTON Engine

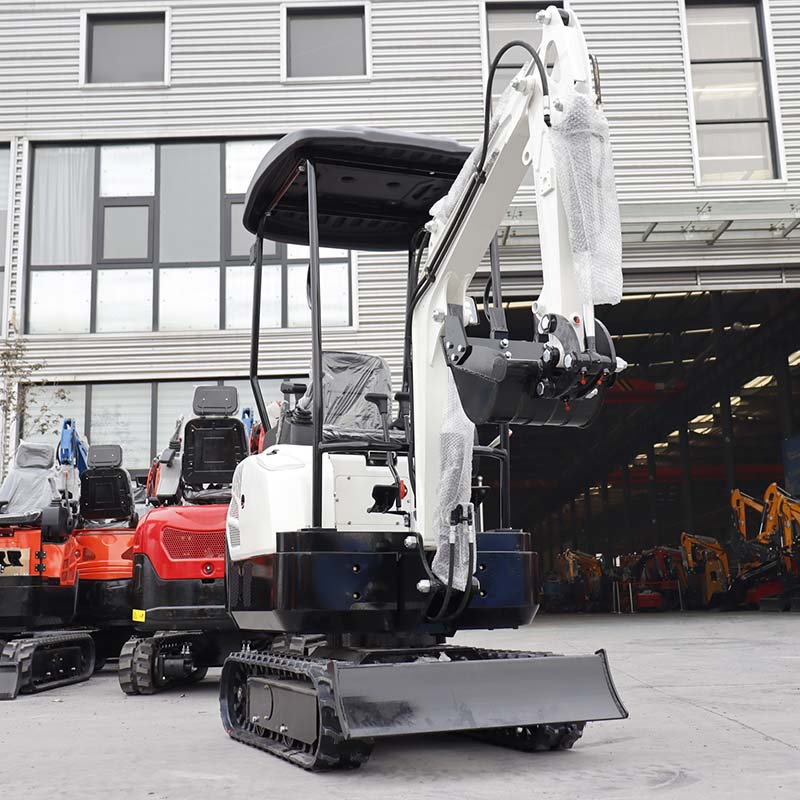

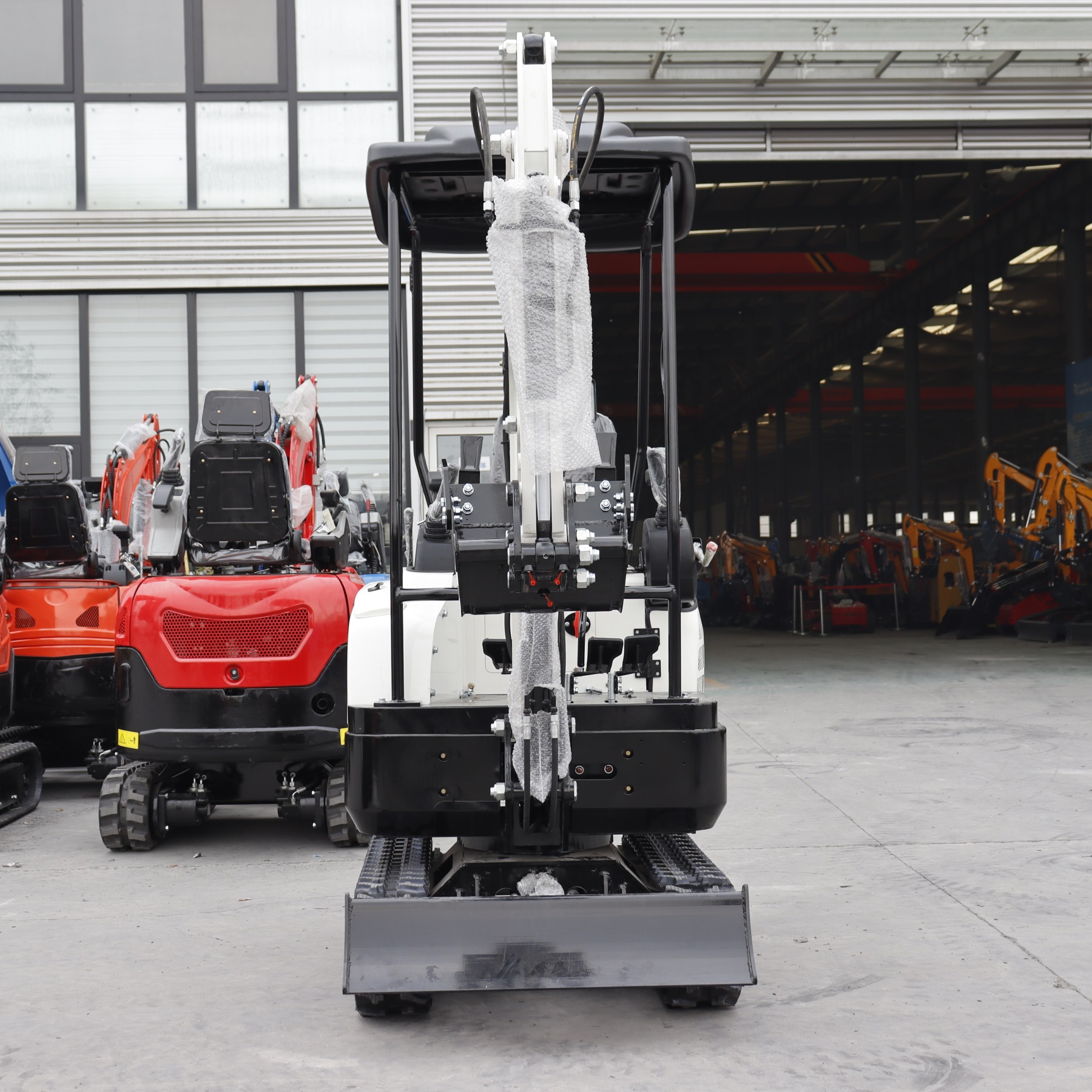

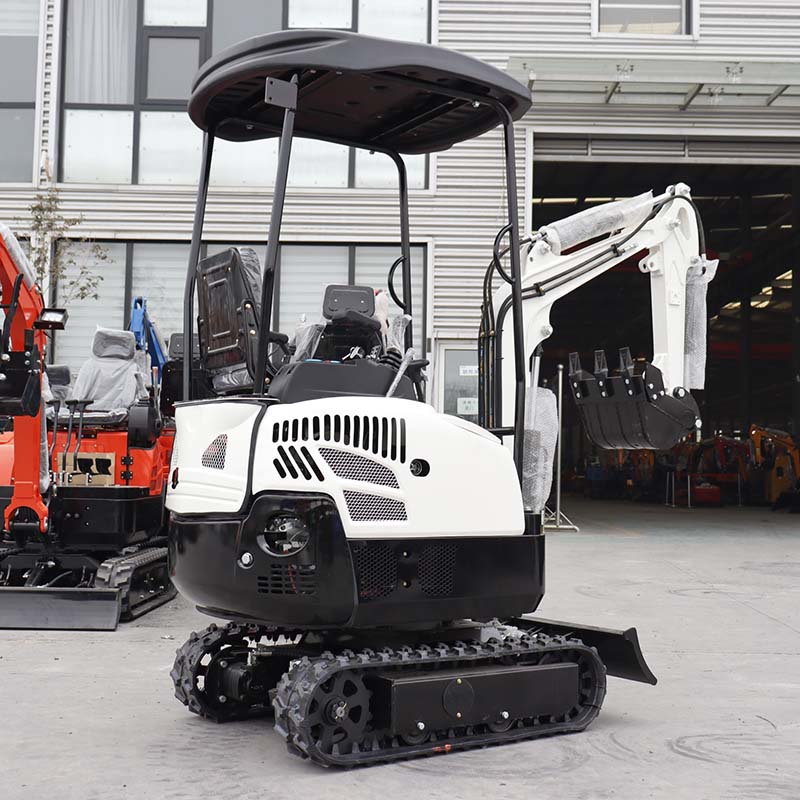

MG15pro Mini Excavator Images
