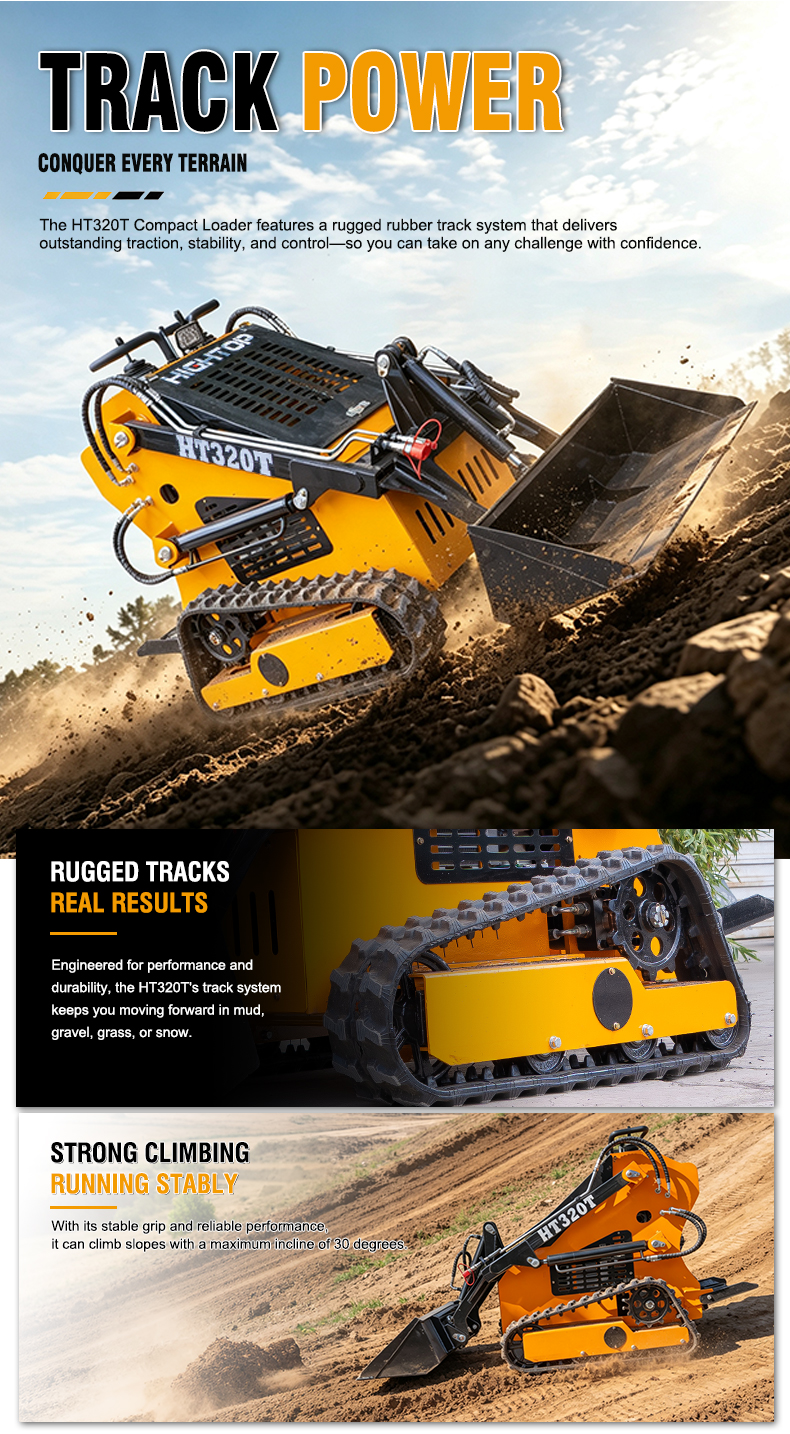

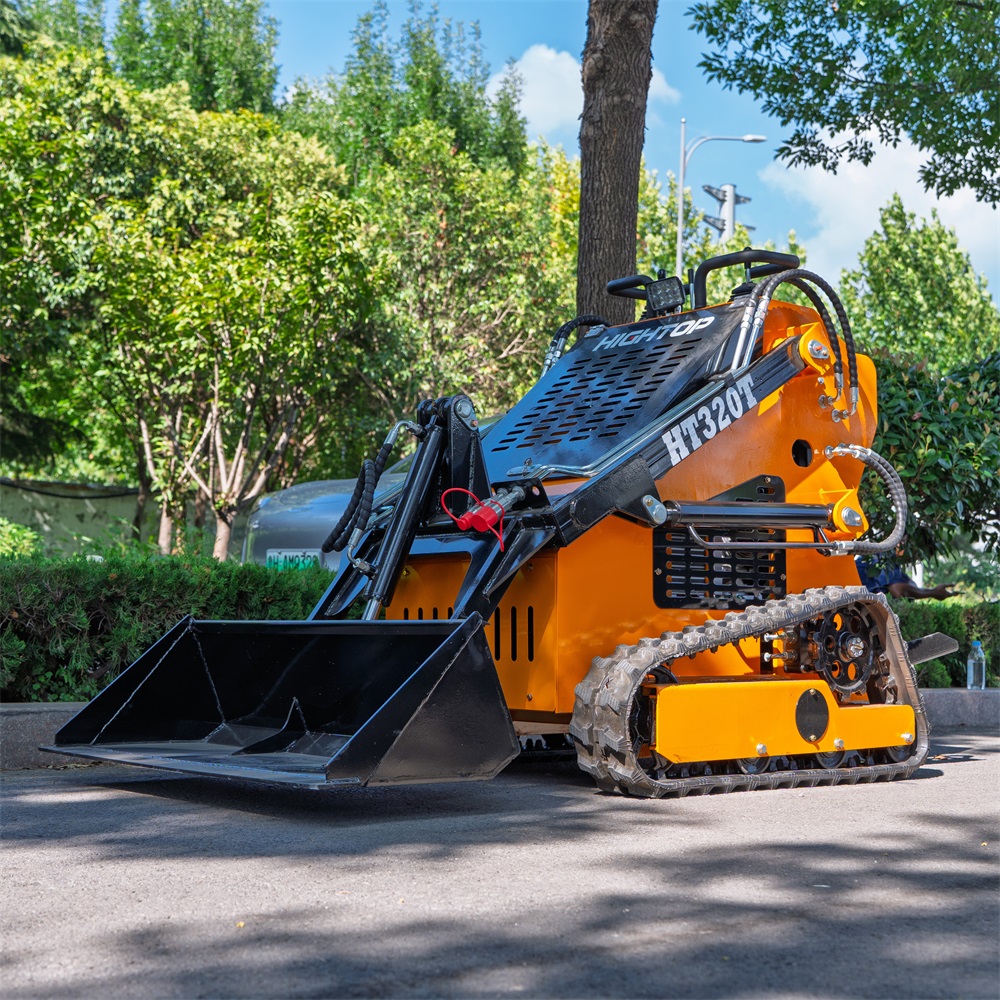

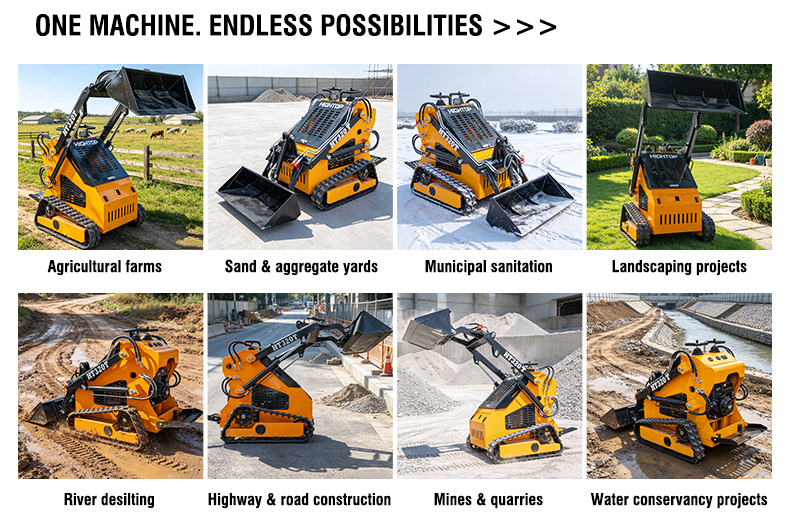

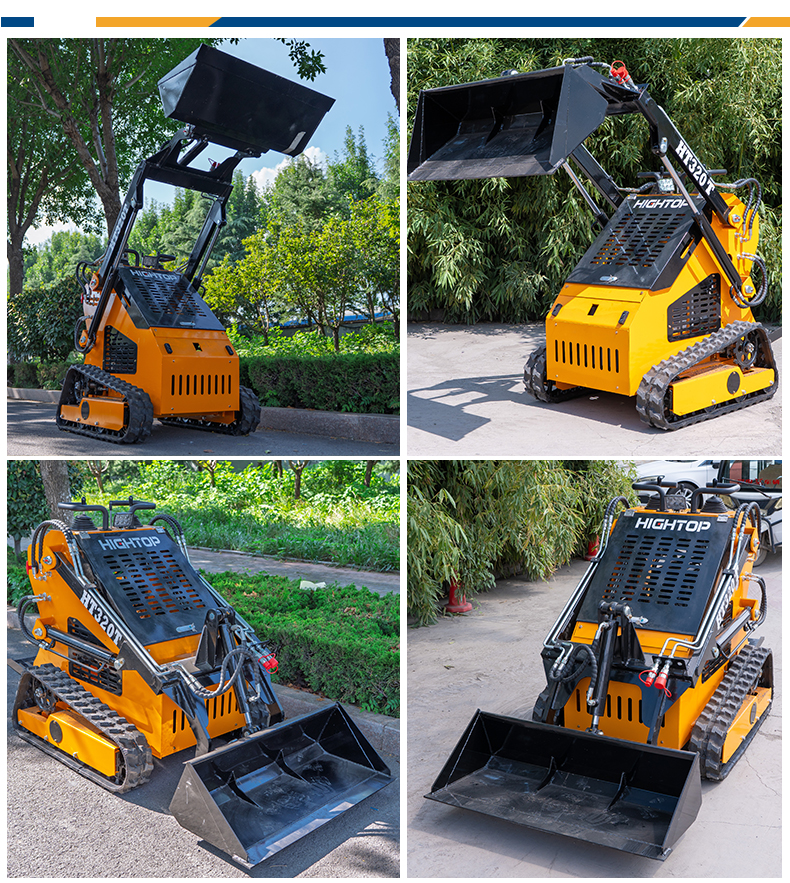

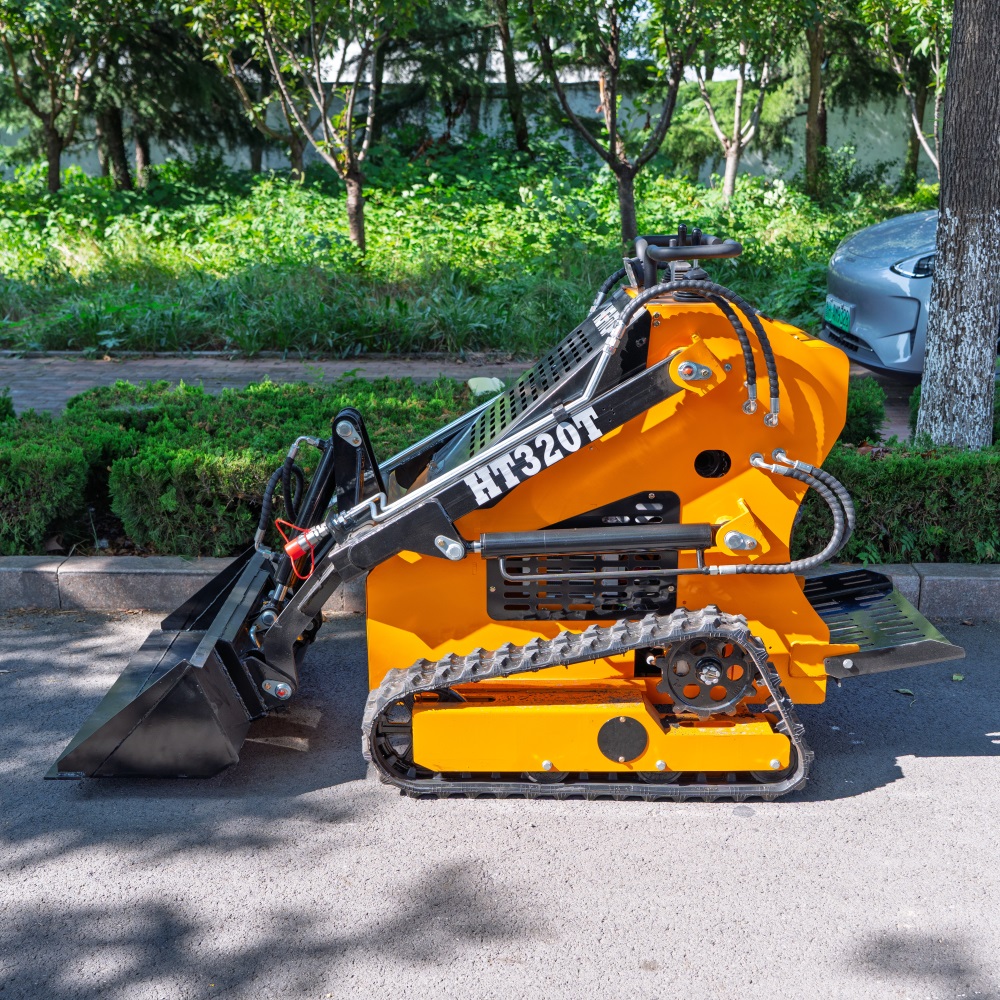

The HT320T is a compact tracked skid-steer loader featuring zero-turn steering and a small, compact body, making it ideal for working in tight spaces. It is suitable for a wide range of applications, including landscaping, yard renovations, greenhouse work, indoor cleanup, material handling in confined construction areas, and debris removal and sweeping. It supports quick-change attachments, making it a versatile machine for multiple tasks.
|

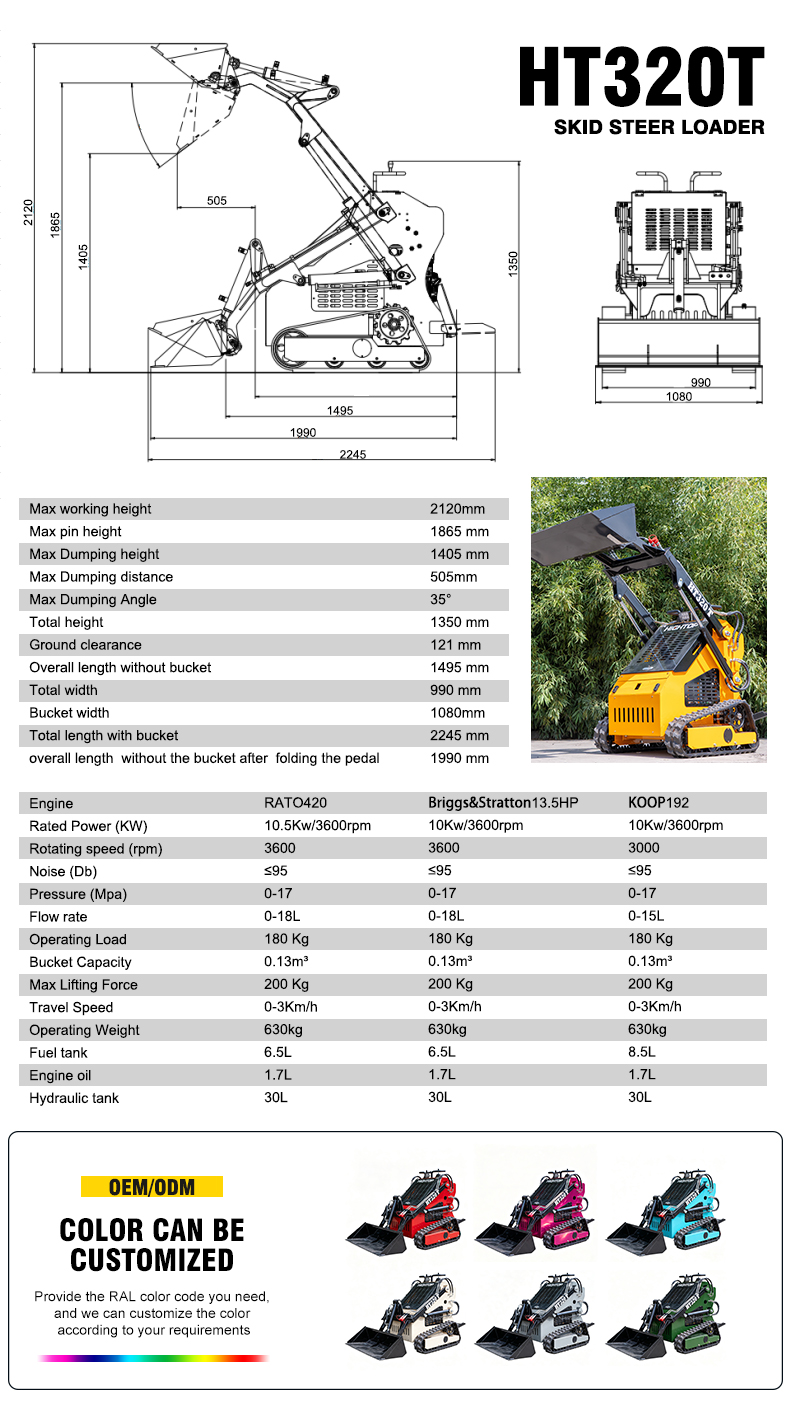

Max working height |
2120mm |
||
|
Max pin height |
1865 mm |
||
|
Max Dumping height |
1405 mm |
||
|
Max Dumping distance |
505mm |
||
|
Max Dumping Angle |
35° |
||
|
Total height |
1350 mm |
||
|
Ground clearance |
121 mm |
||
|
Wheel base |
|
||
|
Overall length without bucket |
1495 mm |
||
|
Total width |
990 mm |
||
|
Bucket width |
1080mm |
||
|
Total length with bucket |
2245 mm |
||
|
overall length without the bucket after folding the pedal. |
1990 mm |
||
|
Engine |
Runtong R420 |
Briggs & Stratton 13.5HP |
KOOP 192 （Separate Fuel Tank） |
|
Rated Power (KW) |
10.5Kw/3600rpm |
10Kw/3600rpm |
10Kw/3600rpm |
|
Rotating speed (rpm) |
3600 |
3600 |
3000 |
|
Noise (Db) |
≤95 |
≤95 |
≤95 |
|
Hydraulic System |
|
|
|
|
Pressure (Mpa) |
0-17 |
0-17 |
0-17 |
|
Flow rate |
0-18L |
0-18L |
0-18L |
|
Operating Load |
180 Kg(Including the weight of the equipment） |
180 Kg(Including the weight of the equipment） |
180 Kg(Including the weight of the equipment） |
|
Bucket Capacity |
0.13m³ |
0.13m³ |
0.13m³ |
|
Max Lifting Force |
200 Kg |
200 Kg |
200 Kg |
|
Travel Speed |
0-3Km/h |
0-3Km/h |
0-3Km/h |
|
Operating Weight |
630kg |
630kg |
630kg |
|
Oil |
|
|
|
|
Fuel tank |
6.5L |
6.5L |
8.5L |
|
Engine oil |
1.7L |
1.7L |
1.7L |
|
Hydraulic tank |
30L |
30L |
30L |
