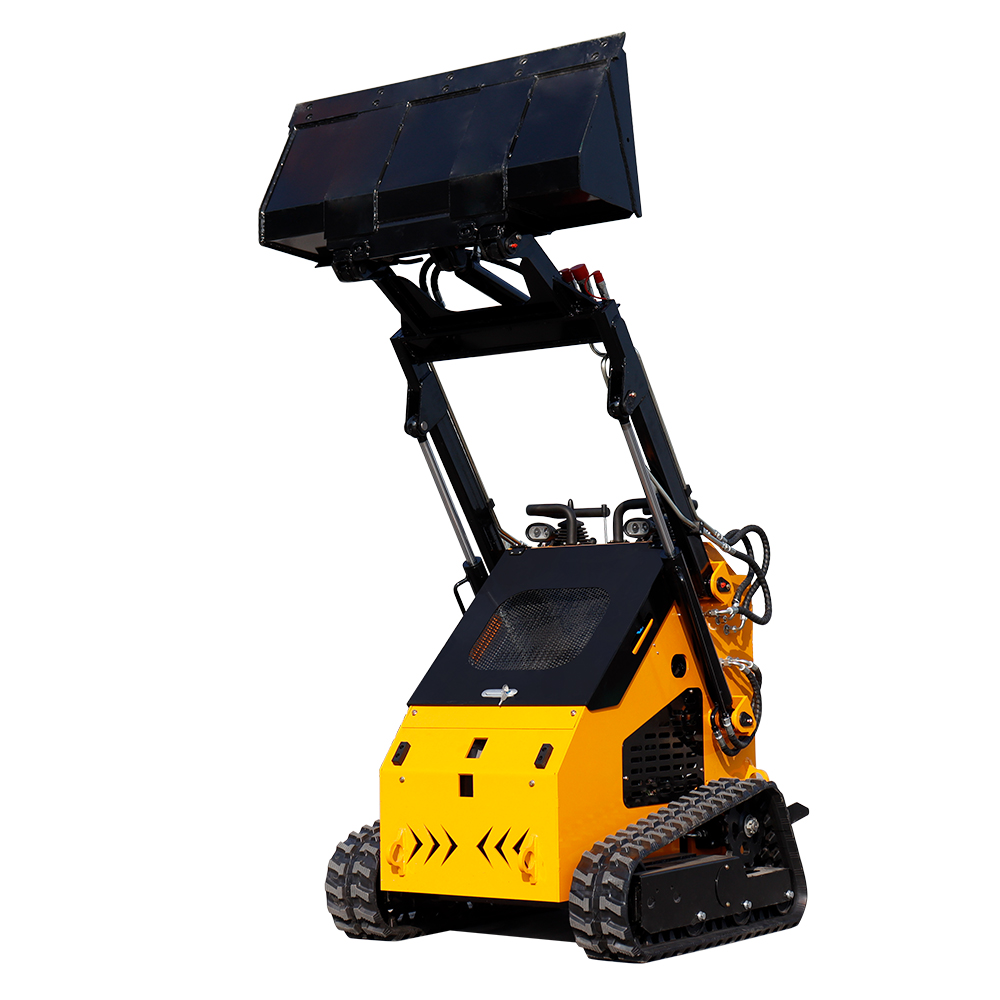

MGHY380T Crawler skid steer loader
|
Max working height |
2120mm |
|
|
Max pin height |
1865 mm |
|
|
Max Dumping height |
1405 mm |
|
|
Max Dumping distance |
575mm |
|
|
Max Dumping Angle |
37° |
|
|
Total height |
1350 mm |
|
|
Ground clearance |
121 mm |
|
|
Wheel base |
|
|
|
Overall length without bucket |
1495 mm |
|
|
Total width |
1021 mm |
|
|
Bucket width |
1150mm |
|
|
Total length with bucket |
2245 mm |
|
|
overall length without the bucket after folding the pedal. |
1990 mm |
|
|
Engine |
RATO Engine R740-1 |
Briggs&Stration23HP |
|
Rated Power (KW) |
16Kw/3600rpm |
17Kw/3600rpm |
|
Rotating speed (rpm) |
3600 |
3600 |
|
Noise (Db) |
≤95 |
≤95 |
|
Hydraulic System |
|
|
|
Pressure (Mpa) |
0-17 |
0-17 |
|
Flow rate |
0-21.6L |
0-21.6L |
|
Operating Load |
300 Kg |
300 Kg |
|
Bucket Capacity |
0.15m³ |
0.15m³ |
|
Max Lifting Force |
380 Kg |
380 Kg |
|
Travel Speed |
0-4.5Km/h |
0-4.5Km/h |
|
Operating Weight |
890 Kg |
890 Kg |
|
Oil |
|
|
|
Fuel tank |
20L |
20L |
|
Engine oil |
1.7L |
1.7L |
|
Hydraulic tank |
37L |
37L |
