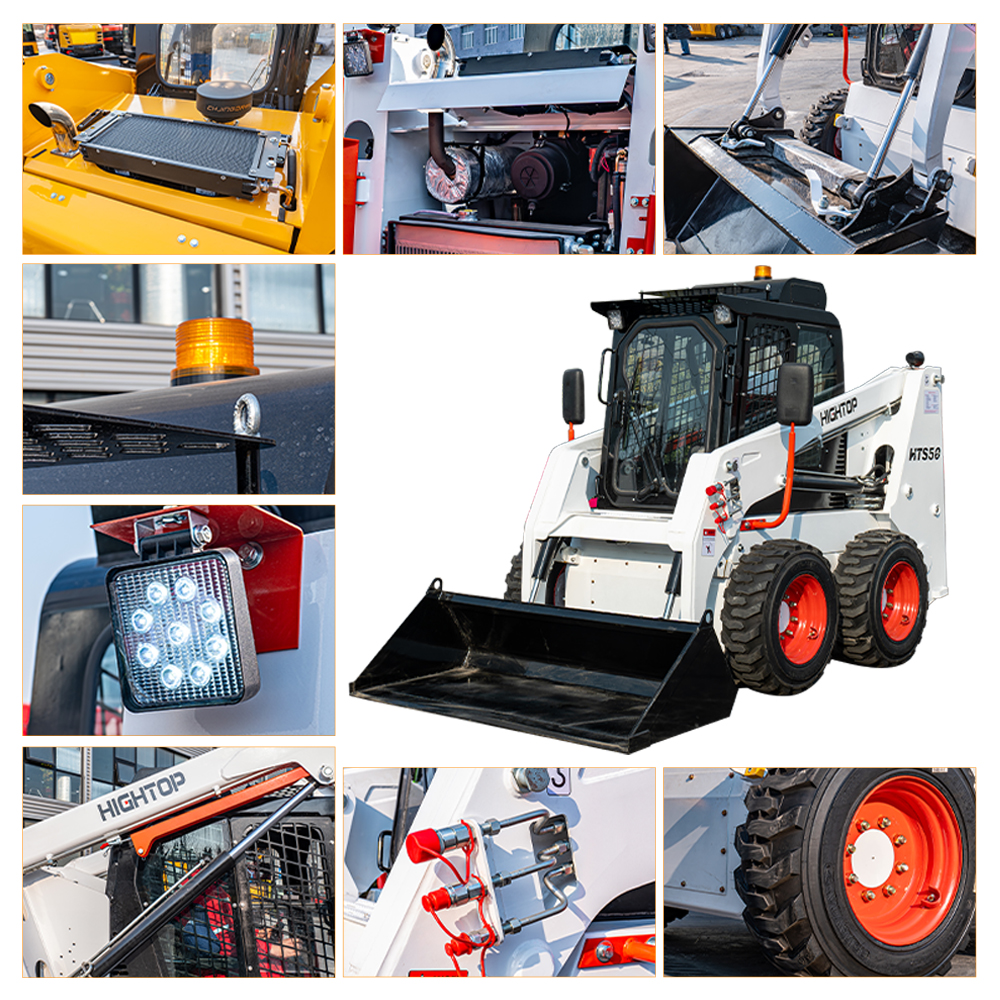

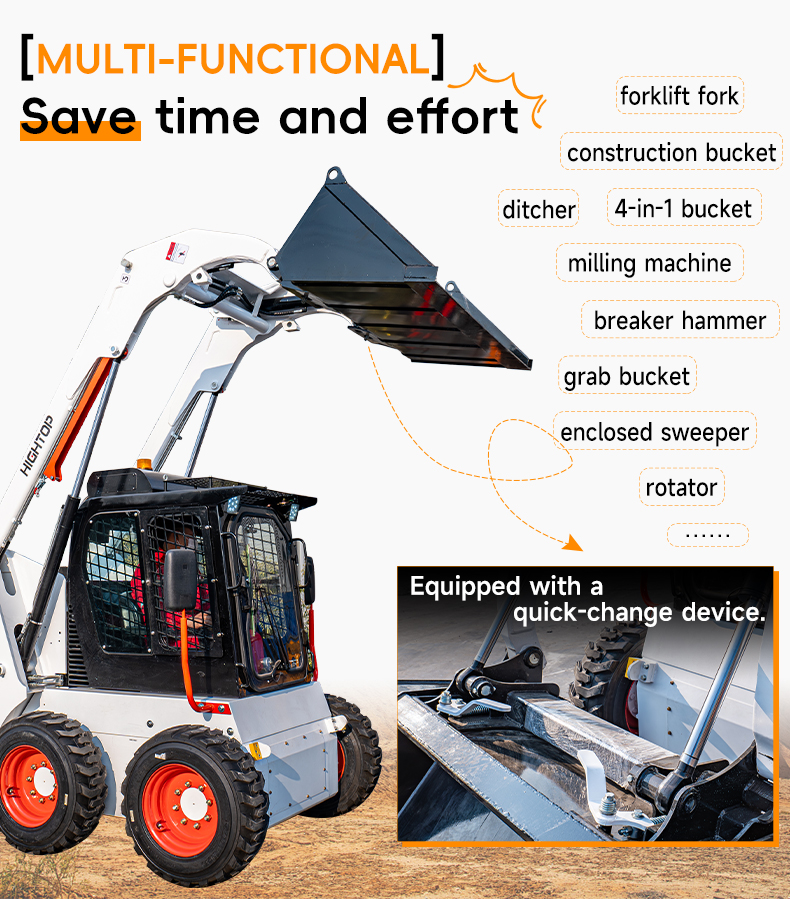

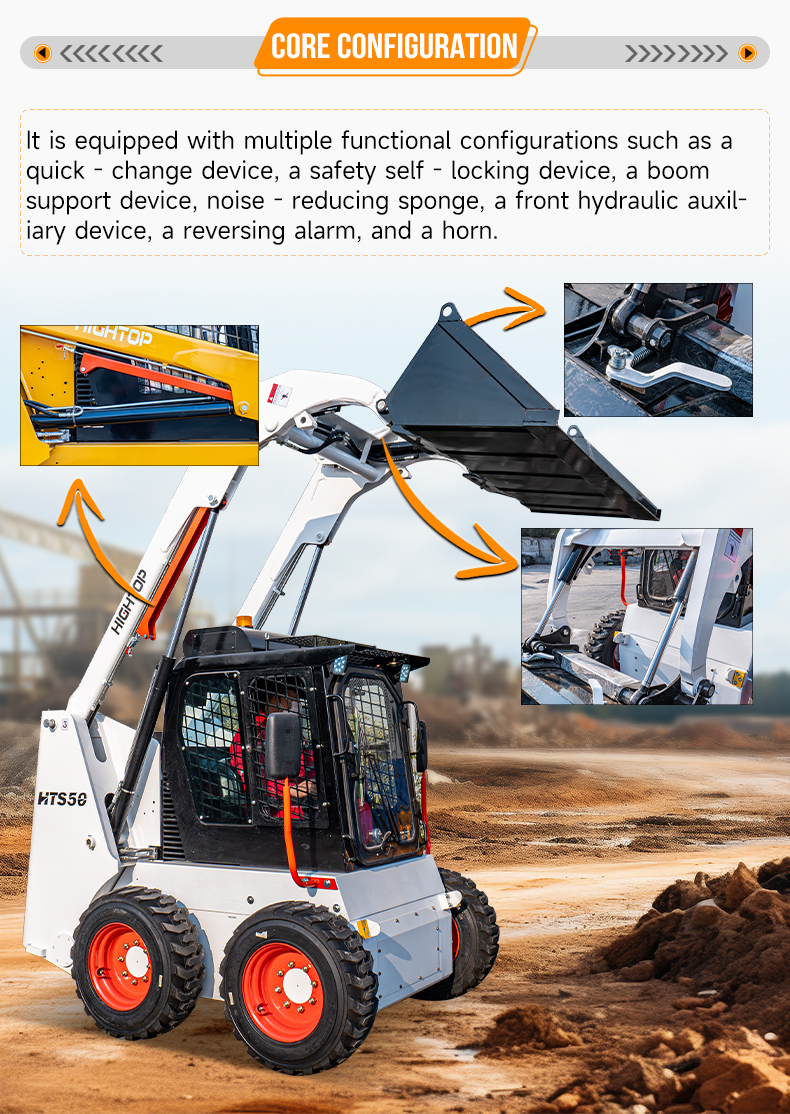

It is equipped with multiple functional configurations such as a quick - change device, a safety self - locking device, a boom support device, noise - reducing sponge, a front hydraulic auxiliary device, a reversing alarm, and a horn.

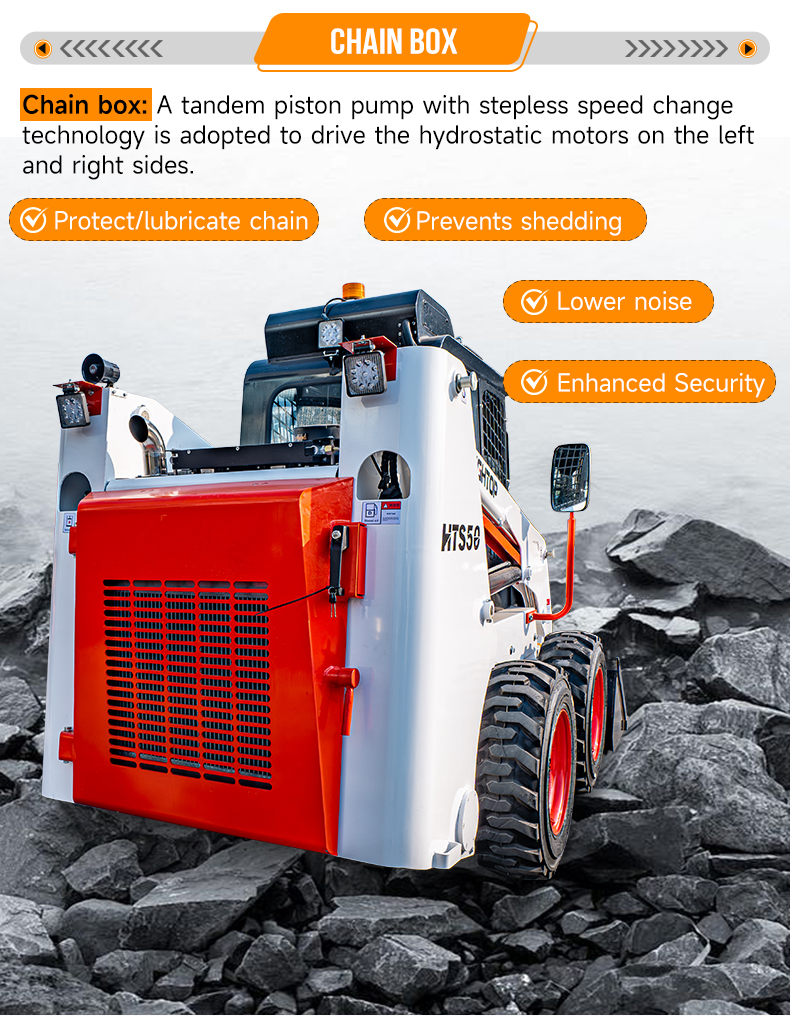

Chain box: A tandem piston pump with stepless speed change technology is adopted to drive the hydrostatic motors on the left and right sides.

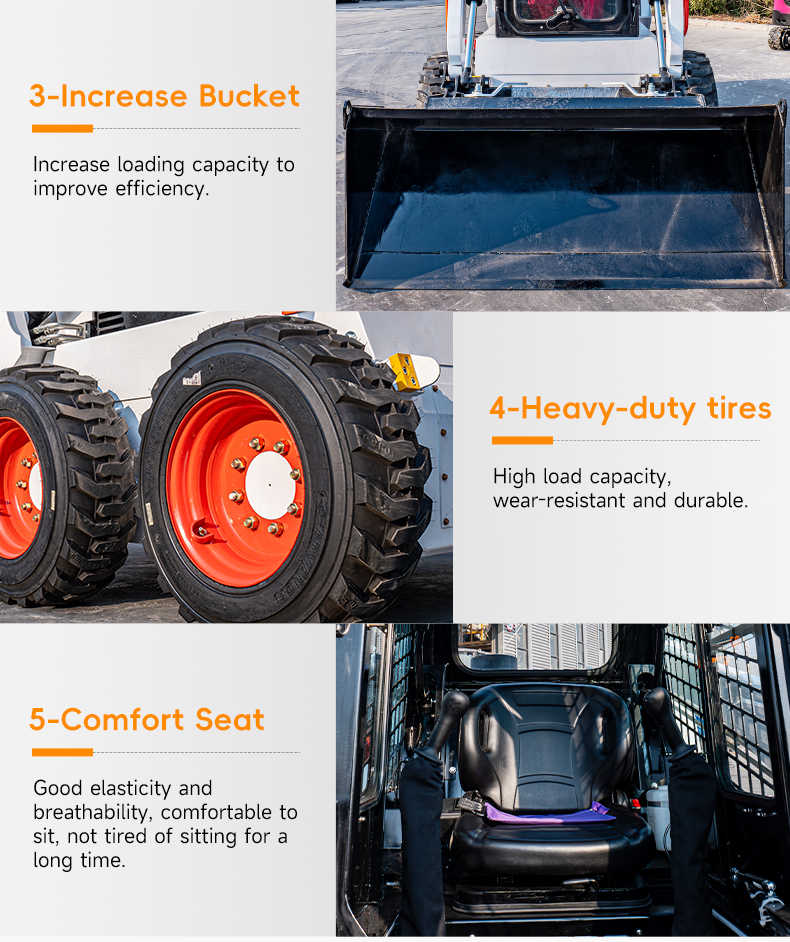

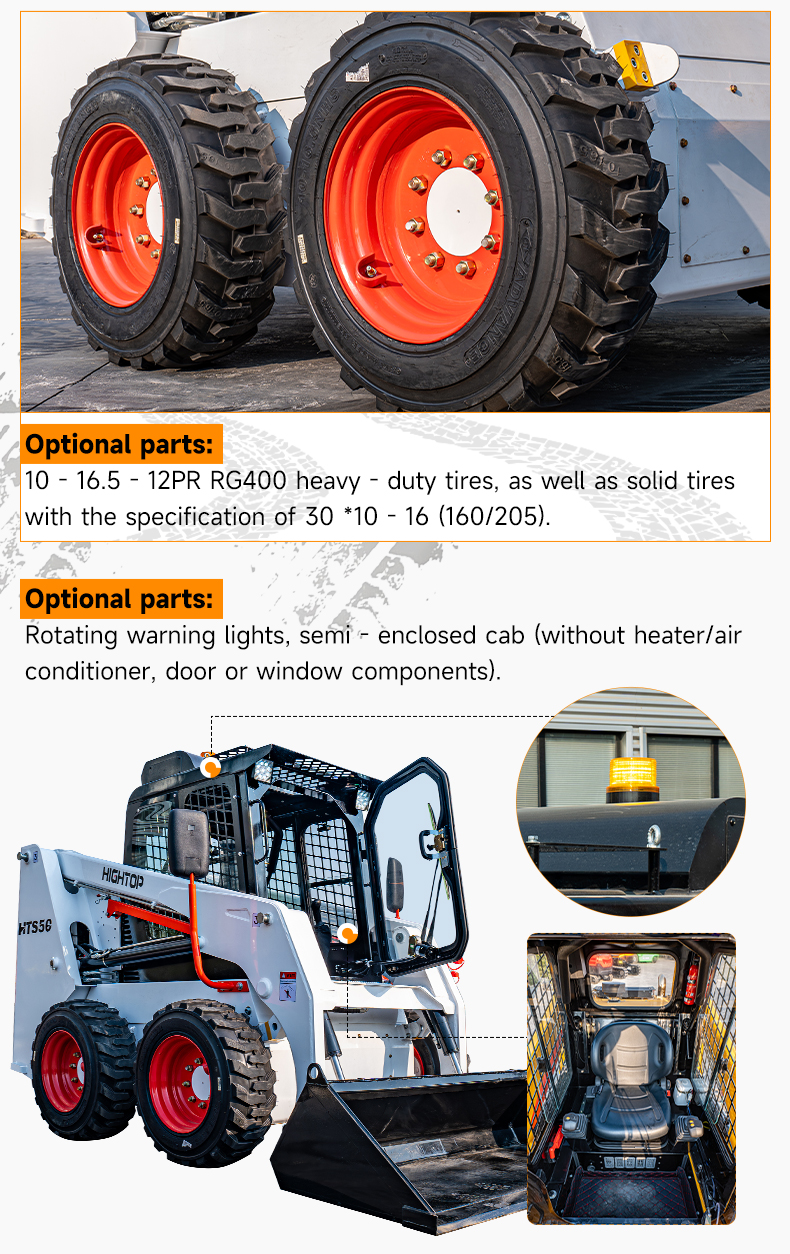

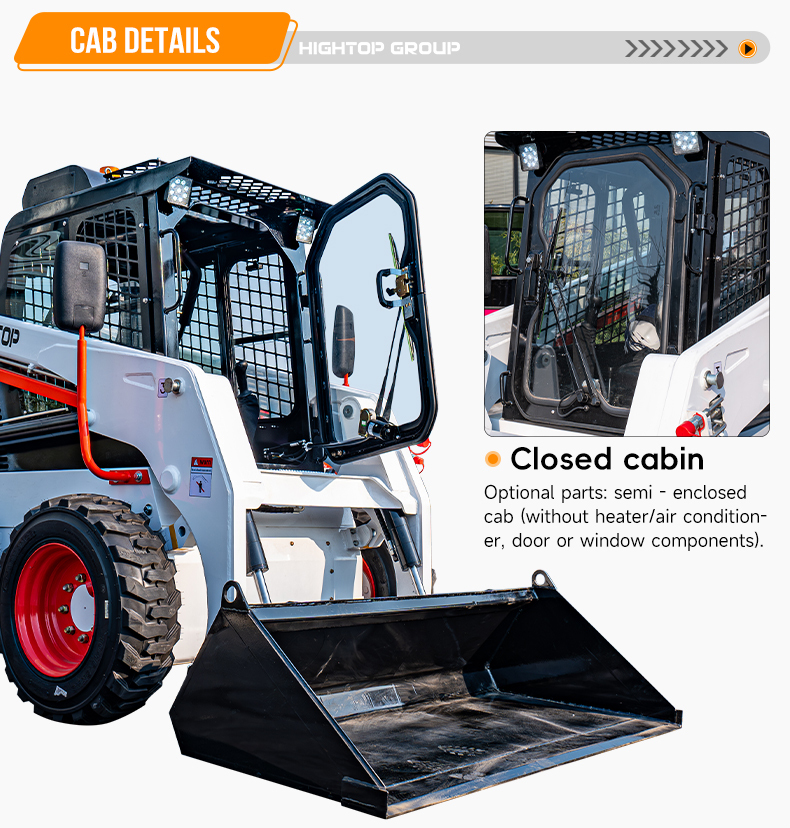

Optional parts: 10 - 16.5 - 12PR RG400 heavy - duty tires, as well as solid tires with the specification of 30*10 - 16 (160/205); rotating warning lights, semi - enclosed cab (without heater/air conditioner, door or window components).

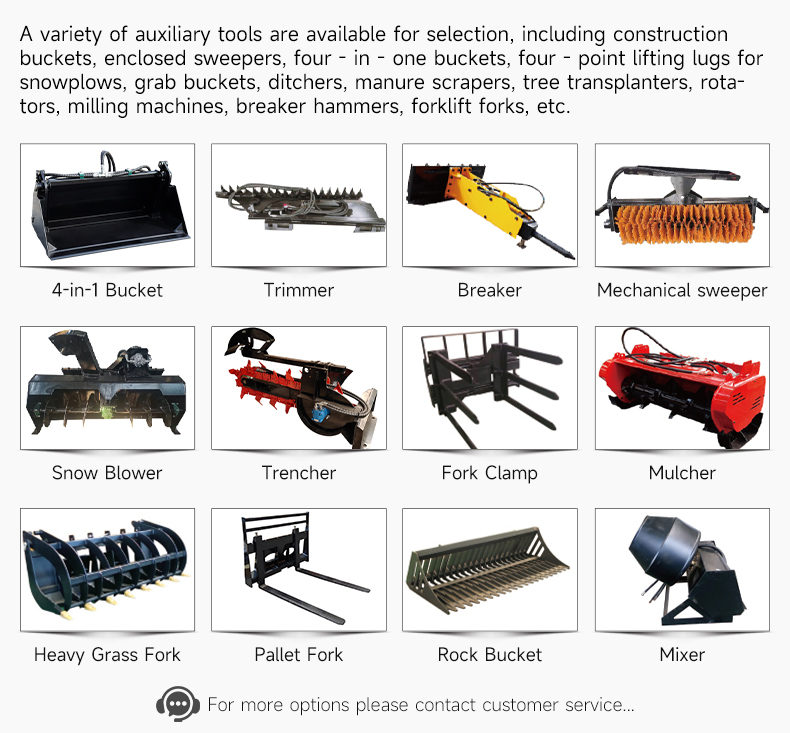

A variety of auxiliary tools are available for selection, including construction buckets, enclosed sweepers, four - in - one buckets, four - point lifting lugs for snowplows, grab buckets, ditchers, manure scrapers, tree transplanters, rotators, milling machines, breaker hammers, forklift forks, etc.
|

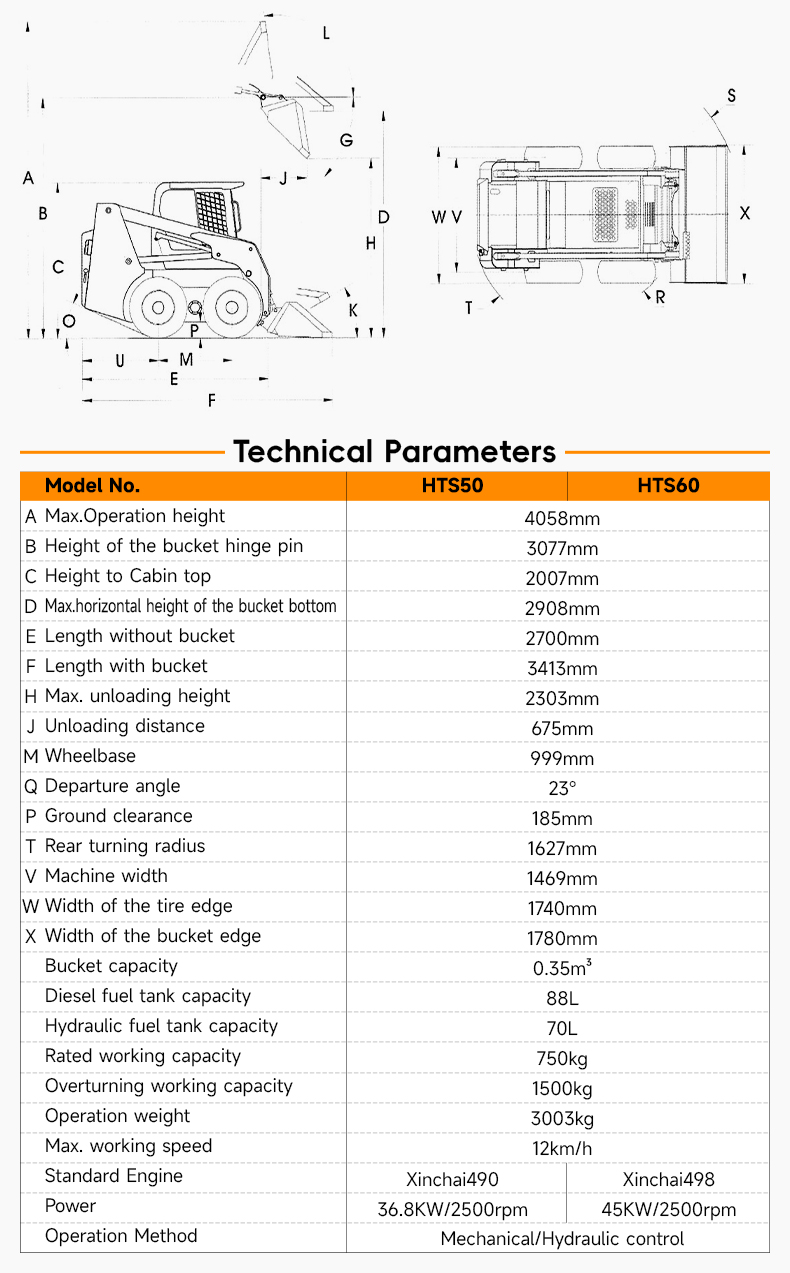

Max.Operation height |
4058mm |
|
Height of the bucket hinge pin |
3077mm |
|
Height to Cabin top |
2007mm |
|
Max.horizontal height of the bucket bottom |
2908mm |
|
Length without bucket |
2700mm |
|
Length with bucket |
3413mm |
|
Max. unloading height |
2303mm |
|
Unloading distance |
675mm |
|
Wheelbase |
999mm |
|
Departure angle |
23° |
|
Ground clearance |
185mm |
|
Rear turning radius |
1627mm |
|
Machine width |
1469mm |
|
Width of the tire edge |
1740mm |
|
Width of the bucket edge |
1780mm |
|
Bucket capacity |
0.35m³ |
|
Diesel fuel tank capacity |
88L |
|
Hydraulic fuel tank capacity |
70L |
|
Rated working capacity |
750kg |
|
Overturning working capacity |
1500kg |
|
Operation weight |
3003kg |
|
Max. working speed |
12km/h |
|
Standard Engine |
Xinchai490 |
|
Power |
36.8KW/2500rpm |
|
Operation Method |
Mechanical/Hydraulic control |
