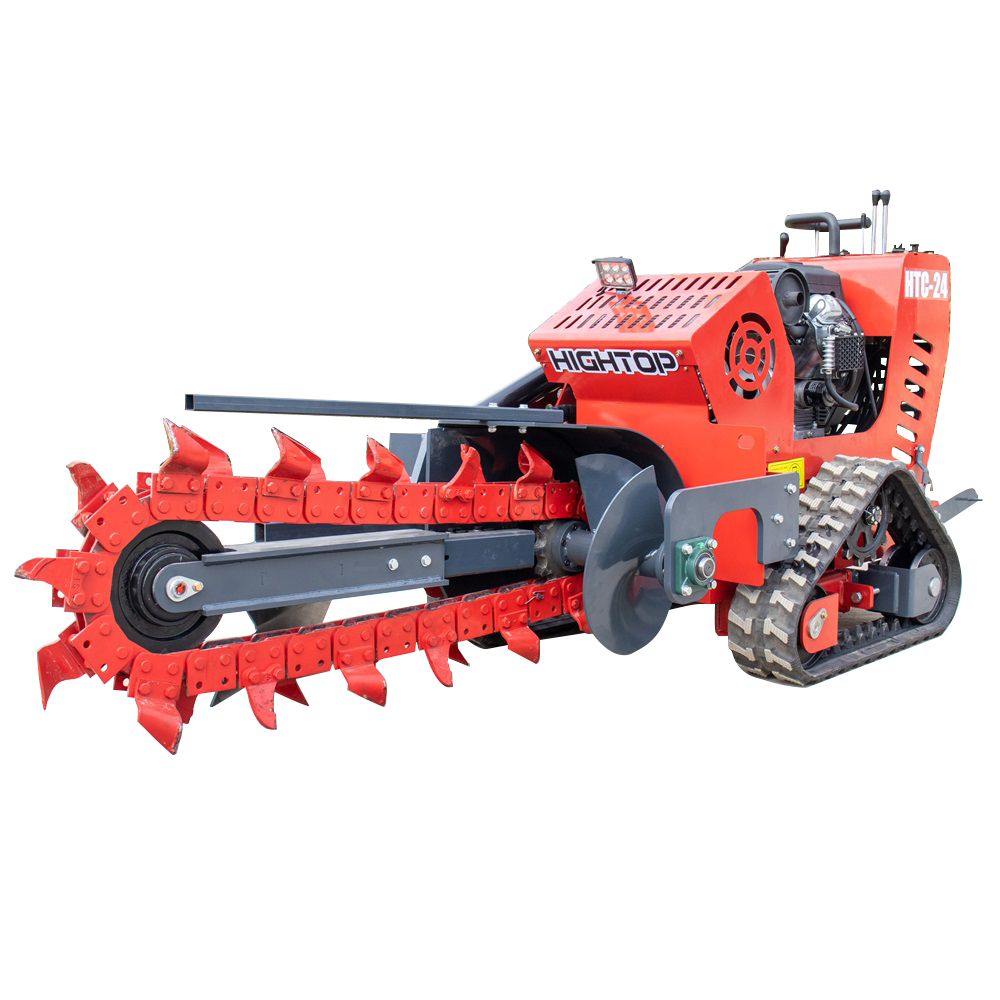

HTC24 Skid Steer Trencher

HTC24 Skid Steer Trencher Instruction

Key Benefits:

Compact yet powerful—a precise and efficient trenching tool

Portable and flexible: Compact transport dimensions allow for easy maneuvering in tight spaces and hassle-free relocation

Powerful performance: 16 kW Runtong engine + direct-drive hydraulic system delivers robust power for stable and efficient operation

Precise control: Continuously variable transmission (CVT) + precise side-to-side spacing control, with freely adjustable trenching depth and width to suit a variety of applications

Long-Lasting Operation: Large-capacity fluid reservoir reduces downtime for refueling, ensuring worry-free continuous operation

Comfortable and Durable: Low-noise design + reliable hydraulic system, balancing operator comfort and service life

Product Features:

1. Compact and portable design for easy relocation

Overall transport dimensions are just 2450mm × 924mm × 1200mm, and the total length with the footrest unfolded is only 2615mm. Its compact size allows for flexible movement in narrow spaces and at field edges, easily adapting to various working environments.

2. Precise Hydraulic Control for Efficient and Controllable Operation

The ground drive utilizes a hydraulic continuously variable transmission system, allowing speed and direction to be freely adjusted from zero to maximum. The excavator chain features direct hydraulic drive with single-speed forward and reverse capabilities. Combined with precise left and right track widths (525 mm on the left / 399 mm on the right), this ensures more accurate trenching positioning and significantly improves operational efficiency.

3. Powerful Engine Configuration, Ensuring Stable Output

Equipped with a Runtong R740-1 engine, rated at 16 kW/3600 rpm, it delivers ample power and rapid response; the engine directly drives the pump system, resulting in higher transmission efficiency and noise levels ≤95 dB, balancing operational performance with user comfort.

4. Flexible Operating Parameters to Meet Diverse Scenarios

Trenching depth is adjustable from 0 to 750 mm, width from 0 to 152 mm, working travel speed from 0 to 50 m/min, and travel speed from 0 to 4.5 km/h. These parameters can be flexibly adjusted according to different soil conditions and pipeline laying requirements, meeting the needs of diverse engineering scenarios.

5. Reliable Hydraulic System for Stable, Long-Lasting Operation

With a hydraulic system pressure of 0–18 MPa, a flow rate of 0–42 L/min, and an operating speed of 0–185 rpm, the core components deliver stable performance and sustained, powerful output, ensuring consistent performance during prolonged, high-intensity trenching operations.

6. User-Friendly Capacity Design, Reducing Downtime for Refueling

With a 15-liter fuel tank, 1.7-liter engine oil capacity, and a 30-liter hydraulic oil tank, the optimized fluid capacity configuration extends the operating range per session, reduces the frequency of mid-operation stops for refueling or oil changes, and enhances overall operational continuity.

HTC24 Skid Steer Trencher Parameter

HTC24 Skid Steer Trencher Details
