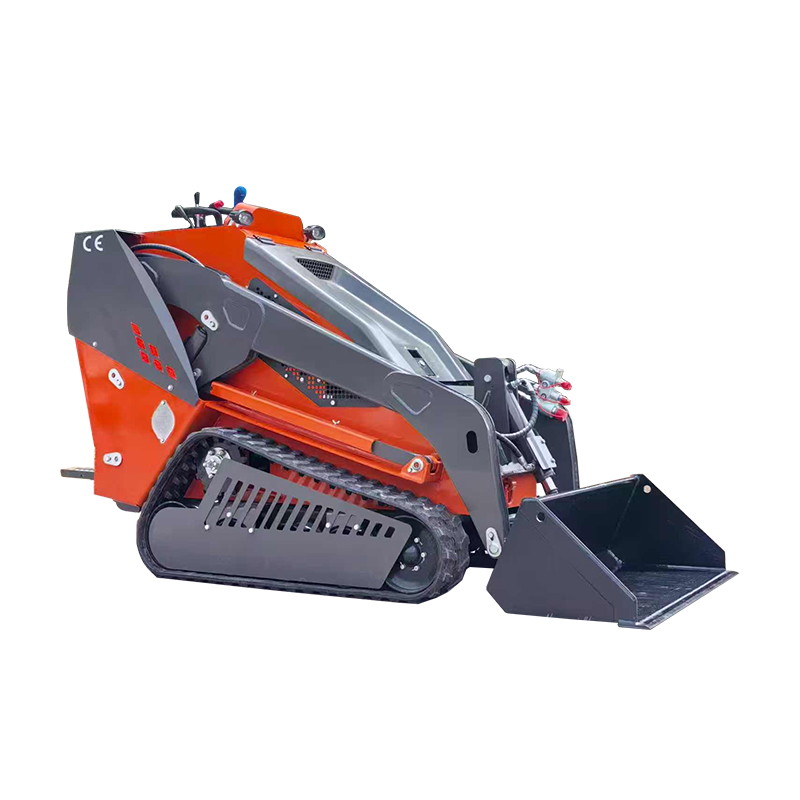

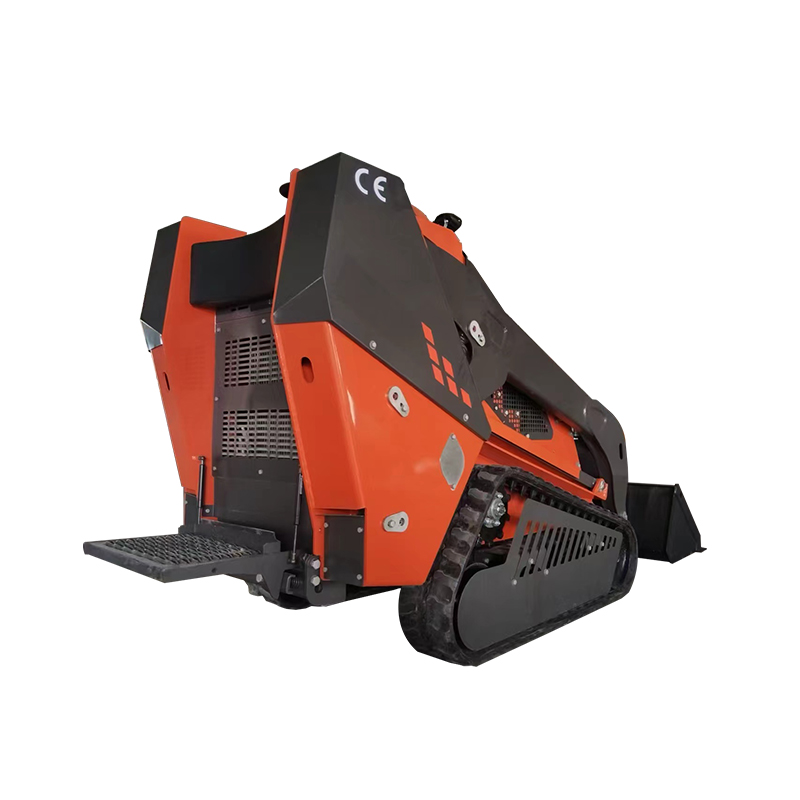

MG1000 Skid Steer Loader

MG1000 Skid Steer Loader Product Overview

1. Efficiency Pioneer: Optimal Balance of High Payload and Compact Dimensions

The MG1000 skid steer loader delivers exceptional performance through robust specifications. Equipped with a 0.14m³ bucket capacity, it combines a powerful 1100kg tipping capacity with a 475kg loading weight to effortlessly handle small-to-medium loading and material transfer tasks. Its bucket reaches a maximum lift height of 2719mm, with a maximum dump height of 1610mm and dump distance of 605mm. The 45° maximum dump angle ensures complete material discharge without residue. Whether transporting construction sand and gravel or organizing factory materials, it achieves “high lift, clean dump, high efficiency” performance.

2. Agile Maneuvering Expert: Compact Body for Multi-Scene Operations

Addressing the challenge of working in confined spaces, the MG1000 features a compact body design. With the bucket attached, its overall length is only 2835mm, total width 1140mm, and turning radius as low as 1528mm. This allows for flexible turning and free movement in restricted areas such as workshop aisles and tunnel construction sites. Without the bucket, its 1035mm overall width and 835mm track gauge further enhance site adaptability. Combined with a 1065mm track contact length and 200mm track width, it reduces ground pressure while maintaining stable operation on complex terrain—delivering big performance in a small package.

3. All-Terrain Capability: Robust Configuration Conquers Complex Conditions

The MG1000 effortlessly handles muddy, bumpy, and other challenging terrains with its professional off-road attributes. A 25° departure angle and 128mm minimum ground clearance effectively minimize chassis scraping risks during operations, ensuring smooth traversal over slopes and uneven terrain. The tracked design, combined with a 10km/h travel speed, balances mobility and efficiency. Whether for outdoor infrastructure construction or farmland preparation, it advances steadily without “falling behind,” providing reliable support for diverse applications.

4. Ergonomic Operation Design: Comfort and Convenience Reduce Workload

Centered on operator experience, the MG1000 features a user-friendly operating space. The 228mm footrest-to-ground clearance, combined with a scientifically designed cabin layout, facilitates easy entry/exit and foot positioning. The bucket's 81° high-angle rotation and responsive control system enable precise, effortless material handling and steering adjustments. The overall height is controlled at 1670mm, ensuring unobstructed visibility while facilitating passage through low factory and warehouse doorways, significantly enhancing operational comfort and convenience.

5. Powerful Engine Core: Renowned Engines Deliver Stable Output

Equipped with either the Kubota D1105 or Perkins 403J-11 engine, rated power reaches 18.2 kW/18.4 kW (25 HP). The 3000 rpm speed ensures sustained, stable power delivery. A hydraulic system pressure of 21 MPa, combined with a working pump flow rate of 47.6 L/min and a travel pump flow rate of 61.6 L/min, ensures swift and powerful responses for boom lifting, bucket tilting, and other operations. The dual main pumps plus auxiliary pump configuration further boosts operational efficiency, effortlessly handling high-intensity continuous work demands.

6. Reliable Endurance: Scientific Configuration Extends Operating Time

The MG1000 ensures sustained operation through optimized energy management. Its 33L fuel tank and 30L hydraulic oil tank meet extended outdoor operation demands, minimizing time lost to frequent refueling. With a total weight controlled at 1780kg, the machine maintains structural stability while reducing power system load. Combined with a low-noise design of ≤93dB, this approach extends equipment lifespan and improves the work environment, delivering dual assurances of efficiency and reliability.
