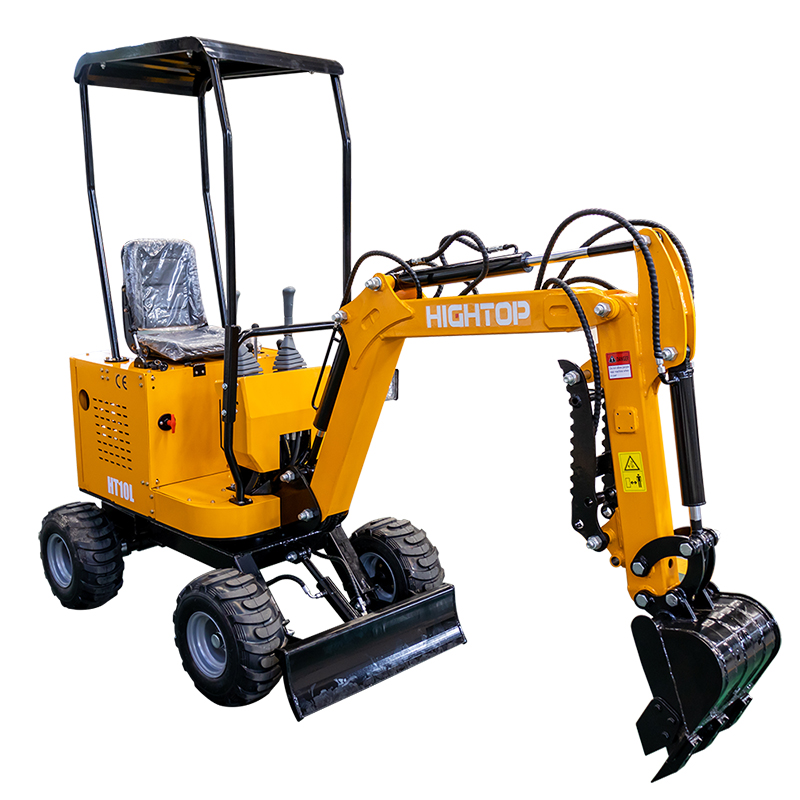

MG-10W Wheel Excavator

MG-10W Wheeled Excavator Instruction

MG-10W wheeled excavator is an earthmoving machinery with tires as walking parts, using hydraulic excavation, hydraulic walking principle, mainly used for municipal maintenance, small pavement construction and other small engineering construction. It has the characteristics of fast self-rotation and quick replacement of the operating device, the hydraulic system drives the multi-way valve control actuator through the main pump, and the hydraulic motor is directly connected to the transmission.

10W  wheel digging rear wheel steering plus rear-wheel drive, high chassis, easy to pass through uneven roads, not easy to support the bottom, front bulldozer shovel, support the ground during bulldozer operation and excavator work, improve the stability of the vehicle during excavation.

MG-10W  Wheeled Excavator Parameter

Total length	2450mm	Bucket capacity	0.02m3
Total width	1030mm	Rated power	10KW/3600rpm
Upper width	750mm	Rotation speed	14r/min
Total height (canopy/cab roof	2260mm	Gradability	30°
Standard tire width	215mm	Bucket digging force	10.2KN
Minimum ground clearance	165mm	Max.excavation height	2200mm
Tail turning radius	765mm	Max. unloading height	1610mm
Distance between front and rear tires	1095mm	Max.excavation depth	1630mm
The height of the bulldozerblade above the ground	167mm	Max. height f at min. turning radius	2015mm
Excavation depth ofbulldozer shovel	88mm	Max.excavation distance	2620mm
Engine	Ducar420	Min. turning radius	1065mm
Valve block	JX10-01	Walking speed	5.2km/h
Gear pump	PGP5108G3LP	Fuel tank capacity	6.6L
Travel motor	BM2315	Hydraulic oil tank capacity	12.5L
Rated power	10KW/3600	Oil capacity	1.1L
Pressure	16MP	System flow rate	28.8L/min
Displacement	8cc	Maximum speed	3600r/min

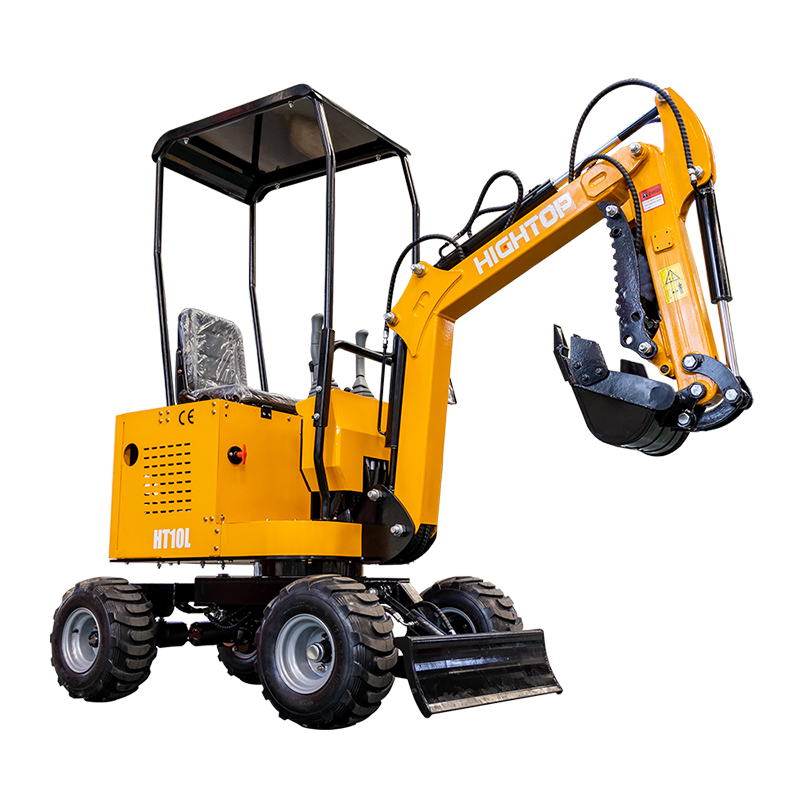

MG-10W Wheeled Excavator Details
