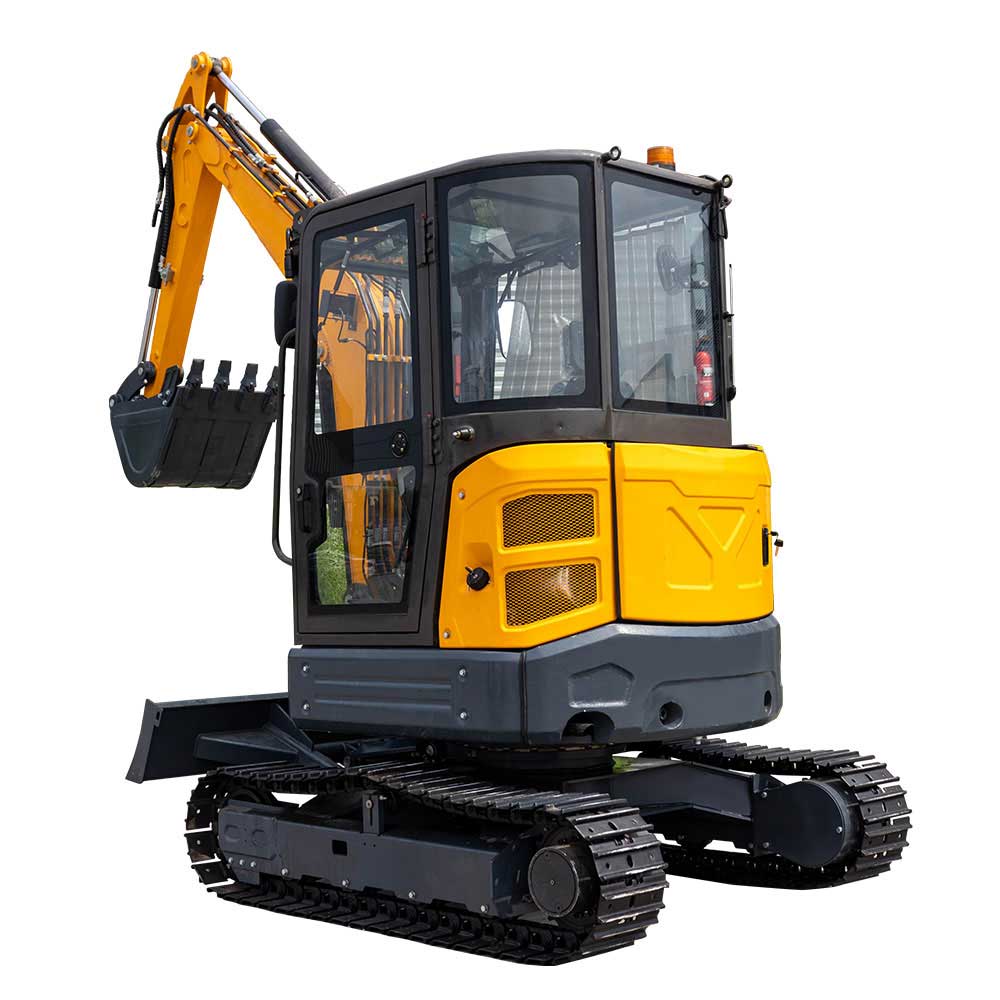

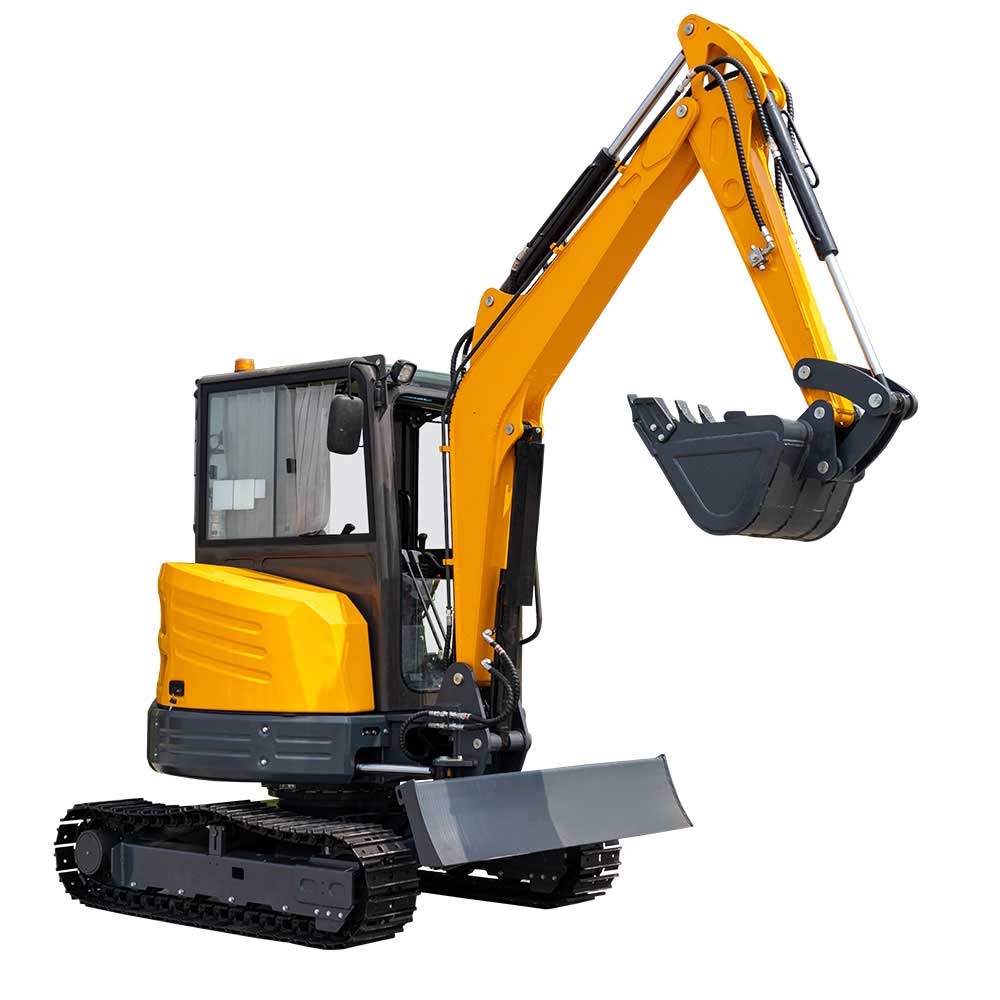

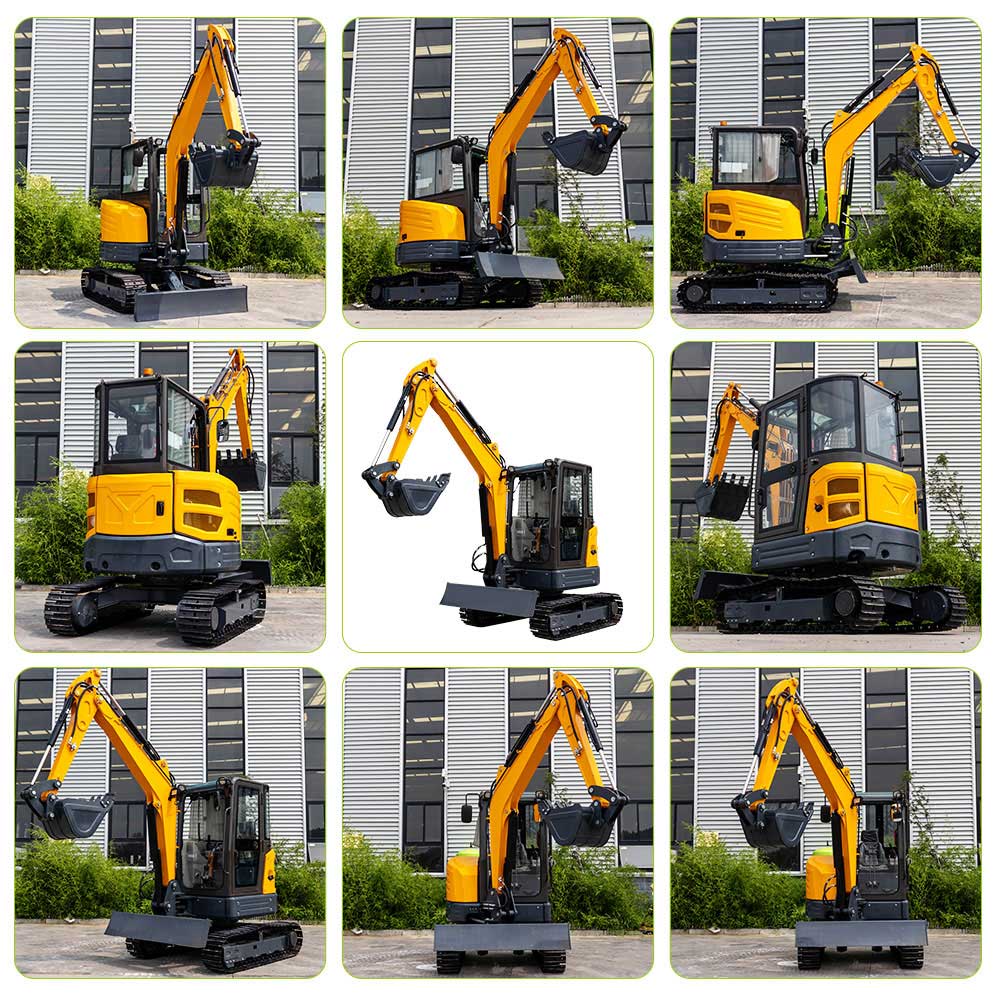

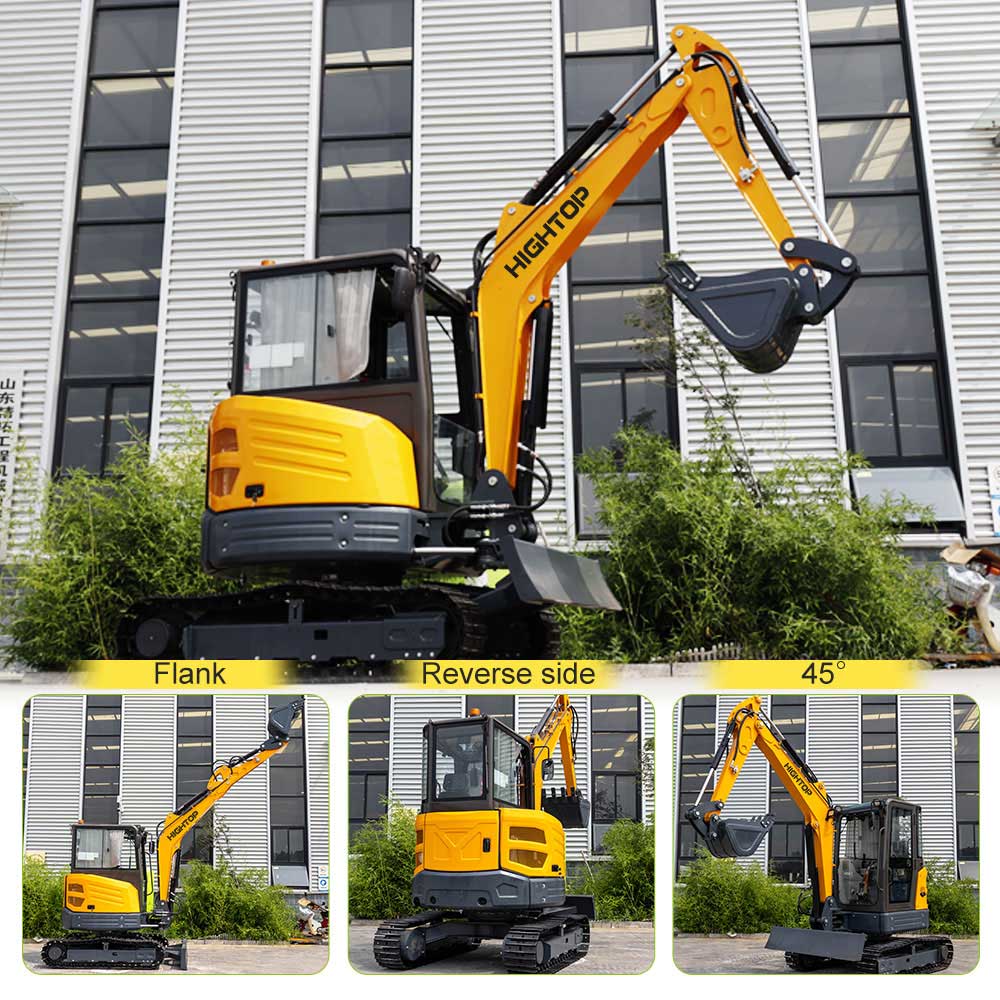

3.5T Small Excavator high fuel efficiency，super power Saving energy and protecting environment
The 3.5 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
|
Machine size |
|
|
Total length/transportation length(A): |
5029mm |
|
Total width(B) |
1720mm |
|
Upper width(D): |
1554mm |
|
Total height (shed roof/cab roof)(C): |
2580mm |
|
Standard track shoe width(F): |
300mm |
|
Minimum ground clearance(H): |
319mm |
|
Tail turnina radius(l): |
885mm |
|
Track ground length(J): |
1645mm |
|
Track length(K): |
2150mm |
|
Bulldozer Ground height(R) |
393mm |
|
Bulldozer digging depth(T): |
461mm |
|
Operating range |
|
|
Maximum digging height (a): |
4938mm |
|
Maximum unloading height(b) |
3376mm |
|
Maximum digging depth(c): |
3106mm |
|
Maximum digging distance(d): |
5175mm |
|
Minimum radius of turn(e): |
2634mm |
|
Max. Height @ Min. Rotation Radius(f) |
3716mm |
|
Performance parameter |
|
|
Operating weight (kG) |
3500kg |
|
SuCKetcaoaCw |
0.12m³ |
|
Rated power : |
18.5KW/2200rpm |
|
Turning speed : |
9r/min |
|
Climbing ability : |
58% |
|
Bucket digging force : |
30.4KN |
|
Bucket rod digging force : |
18.2KN |
|
Main parts |
|
|
Engine :Kubota D1703 |
Valve pressure:24MP |
|
Flow sharing main valve :HVSE-09-09-P270-BE212 |
Pump displacement:40cc |
|
Swash plate axial plunger variable pump :HP5V45/AV10RB2S2MGA-L1/1-HT1 |
Travel speed :4.2/2.4km/h |
|
Travel motor :Variable plunger motor |
Enqine oil capacity :5.1L |
|
Fuel tank :Capacity 50L |
Valve svstem flow :79.2L/min |
|
Cooling system :Capacity 5.05L |
Pump Max.speed :3250r/min |
|
Hydraulic oil tank :Capacity 55L |
|
