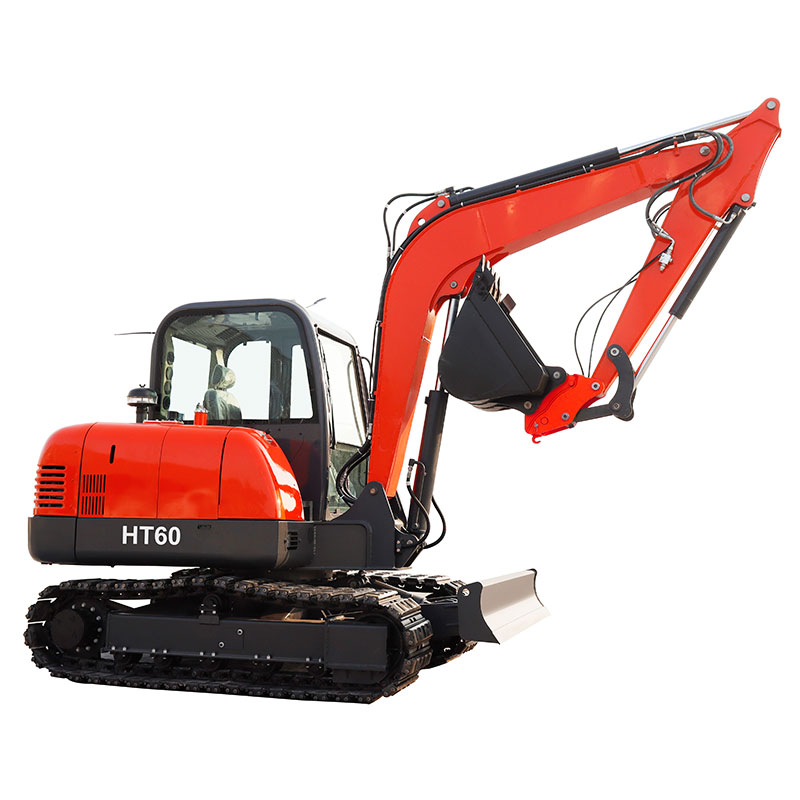

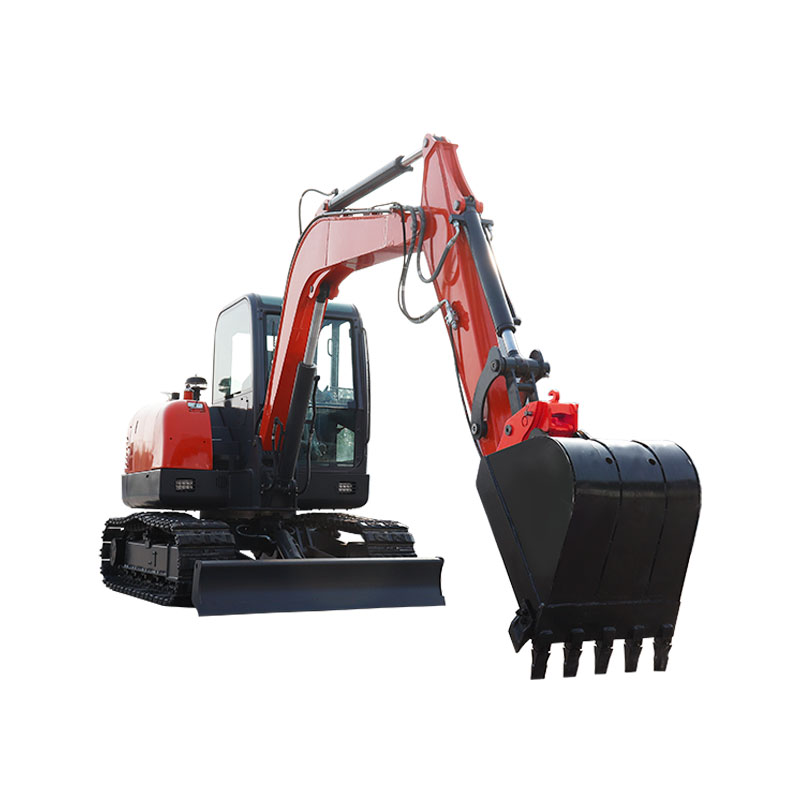

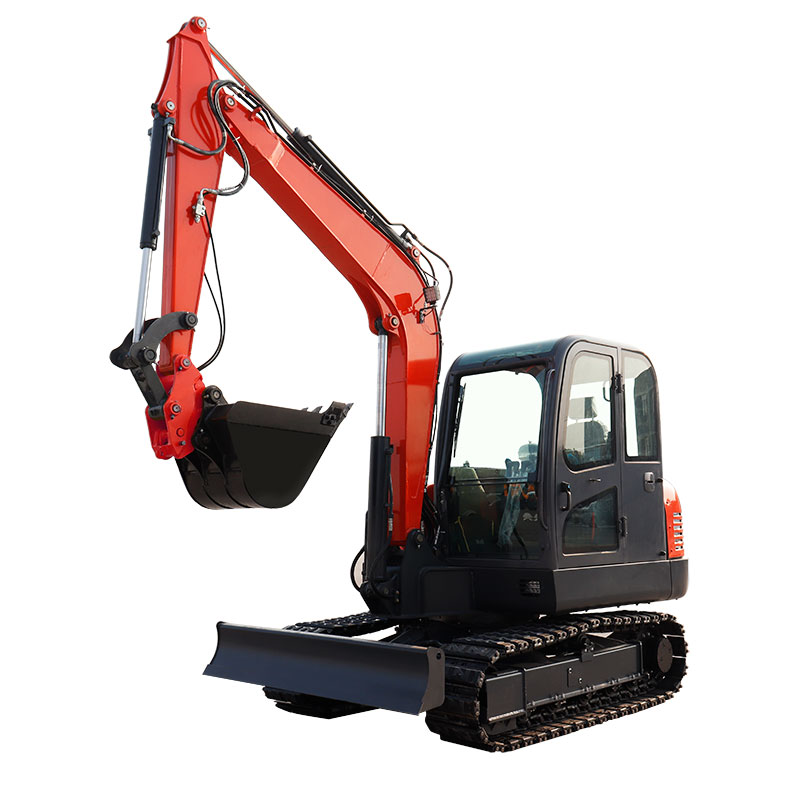

MG60 Crawler Excavator
|
Model |
MG60 |
|
Standard Bucket capacity |
0.21m³ |
|
Swing speed |
11rpm |
|
Maximum Grade ability |
35° |
|
Maximum Bucket digging force |
48KN |
|
Maximum Arm digging force |
35KN |
|
Hydraulic system pressure |
28Mpa |
|
Machine weight |
6100kg |
|
Fuel tank |
87L |
|
Hydraulic oil tank |
100L |
|
Engine |
|
|
Emission Standard |
Tier 3/ Stage III |
|
Make /Model |
Kubota Engine/V2607 |
|
Power /Rotation speed |
42.4kw(58HP)@2000rpm |
|
Number of cylinder |
4 |
|
Track System |
|
|
Maximum Travel speed |
2.4/4.3 km/h |
|
Width of track shoe |
400mm |
|
Number of track shoe per side |
40pcs |
|
Number of upper roller per side |
1 |
|
Number of bottom roller per side |
5 |
|
Working Range |
|
|
Maximum Digging height |
5499mm |
|
Maximum Dumping height |
3845mm |
|
Maximum Digging depth |
3808mm |
|
Maximum Vertical digging depth |
2983mm |
|
Maximum Digging radius |
6128mm |
|
Minimum swing radius |
2607mm |
|
Maximum Lifting height of blade |
376mm |
|
Maximum Cutting depth of blade |
474mm |
|
Machine Size |
|
|
Overall dimension (L*W*H) |
5940mm*1880mm*2570mm |
|
Height of cabin |
2600mm |
|
Track length on ground(Axle base) |
1990mm |
|
Track gauge |
1480mm |
|
Minimum Ground clearance |
353mm |
|
Swing radius at tail |
1689mm |
