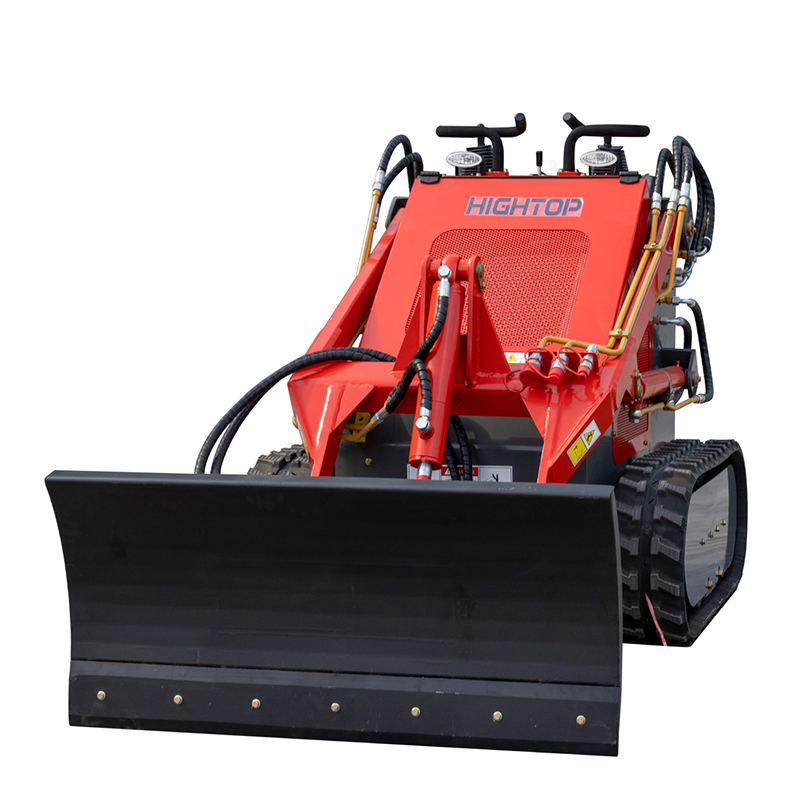

The skid steer loaders, multi-functional engineering vehicles, multi-purpose engineering machine.
The skid steer loaders, multi-functional engineering vehicles, multi-purpose engineering machine. Achieved a special chassis vehicle steering wheel equipment, wheel running gear, all-wheel drive, skid steer, random job site can be quickly replaced or mount devices using a variety of work on both sides of the wheel speed difference, to adapt to different working environment and job content.
· Ergonomically designed, operating safety
· Quick hitch system
· Balance weight platform optional
· Higher lifting height than similar products
· Stand on or walk behind
· Double hand grip
Feature:
1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.
2. Clear instrument panel sign, operating conveniently.
3. Joystick handle optional, operating more comfortable.
4. International warranty engine, enjoy local 3 years free engine maintenance.
5. It is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on.
|
Item |
Metric |
Inch |
|
Max working height（A） |
2115 mm |
83.3 inch |
|
Max pin height （B） |
1856 mm |
73.1 inch |
|
Max dump height（C） |
1460 mm |
57.5 inch |
|
The highest point discharge distance（D） |
388 mm |
15.3 inch |
|
Bucket swing angle（β） |
55° |
55° |
|
Bucket unloading angle（γ） |
30° |
30° |
|
Angle of departure（α） |
8° |
8° |
|
Total height （H） |
1205 mm |
47.4 inch |
|
The height from the ground（F） |
90 mm |
3.5 inch |
|
Wheelbase （G） |
636 mm |
25.0 inch |
|
No bucket length（J） |
1752 mm |
69.0 inch |
|
Total width （W） |
1033 mm |
40.7 inch |
|
Bucket width （K） |
980 mm |
38.6 inch |
|
Total length（L）（with bucket） |
2206 mm |
86.9 inch |
|
Turning radius (R) |
1307 mm |
51.5 inch |
|
Optional engine |
Optional engine：BRIGGS & STRATTON,Roto,Kubota,Locin |
||||||
|
|
|||||||
|
Noise（Db） |
≤95 |
||||||
|
Hydraulic System |
Hydraulic pressure（Mpa） |
17 |
|||||
|
Cycle time（s） |
Raise |
Dump |
Lower |
||||
|
4.27 |
1.34 |
3.31 |
|||||
|
Performance parameters |
|
Metric |
inch |
||||
|
Load weight (kg) |
200 Kg |
441 Lb |
|||||
|
Bucket capacity |
0.15 m3 |
5.33 ft3 |
|||||
|
Max lifting power |
375 Kg |
827 Lb |
|||||
|
speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|||||
|
Operating weight |
890kg
|
1958lb
|
|||||
|
Tire type |
Chevron tire |
18*6.5-8 |
|||||
