The intelligent lawn mower can complete the work of mowing the lawn independently, without direct human control and operation, and has low power, low noise, exquisite and beautiful appearance, and gre
The intelligent lawn mower can complete the lawn mowing work independently without manual control and operation. It has the characteristics of low power, low noise, beautiful appearance, and greatly reduces the manual operation.

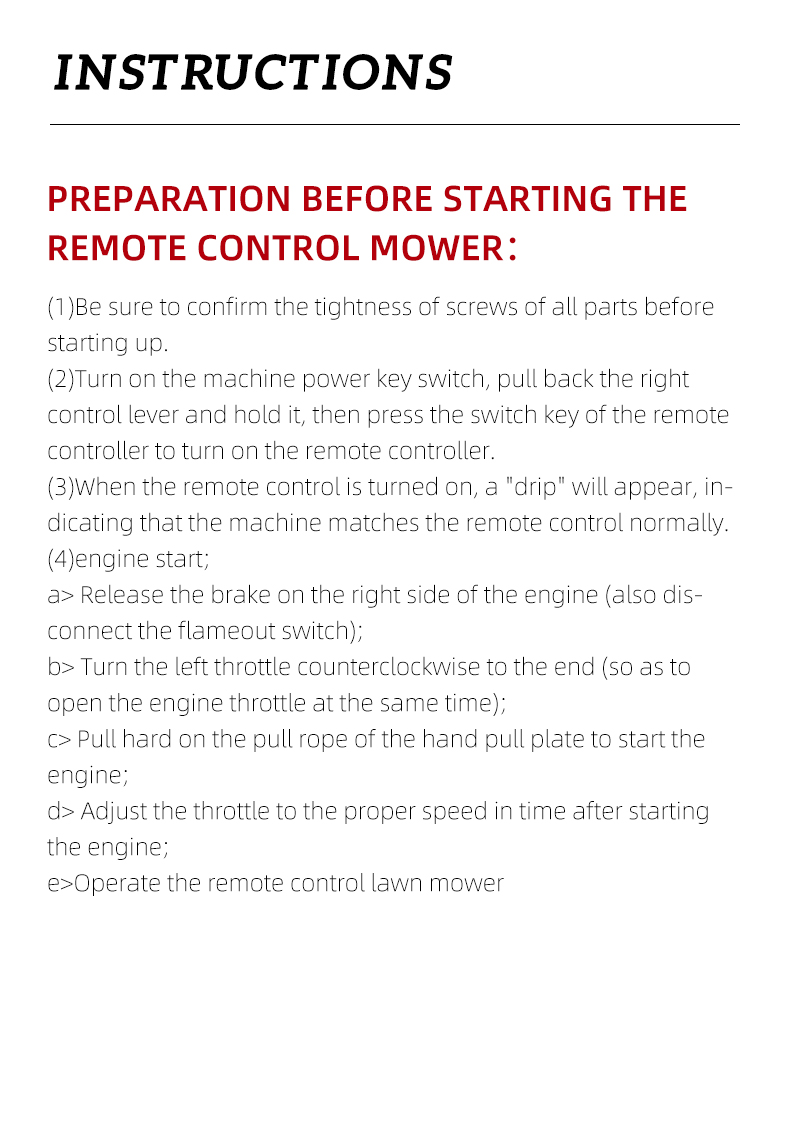

Preparing to Start the Remote Control Mower
(1) Be sure to confirm the tightness of the screws in each part before starting the machine.

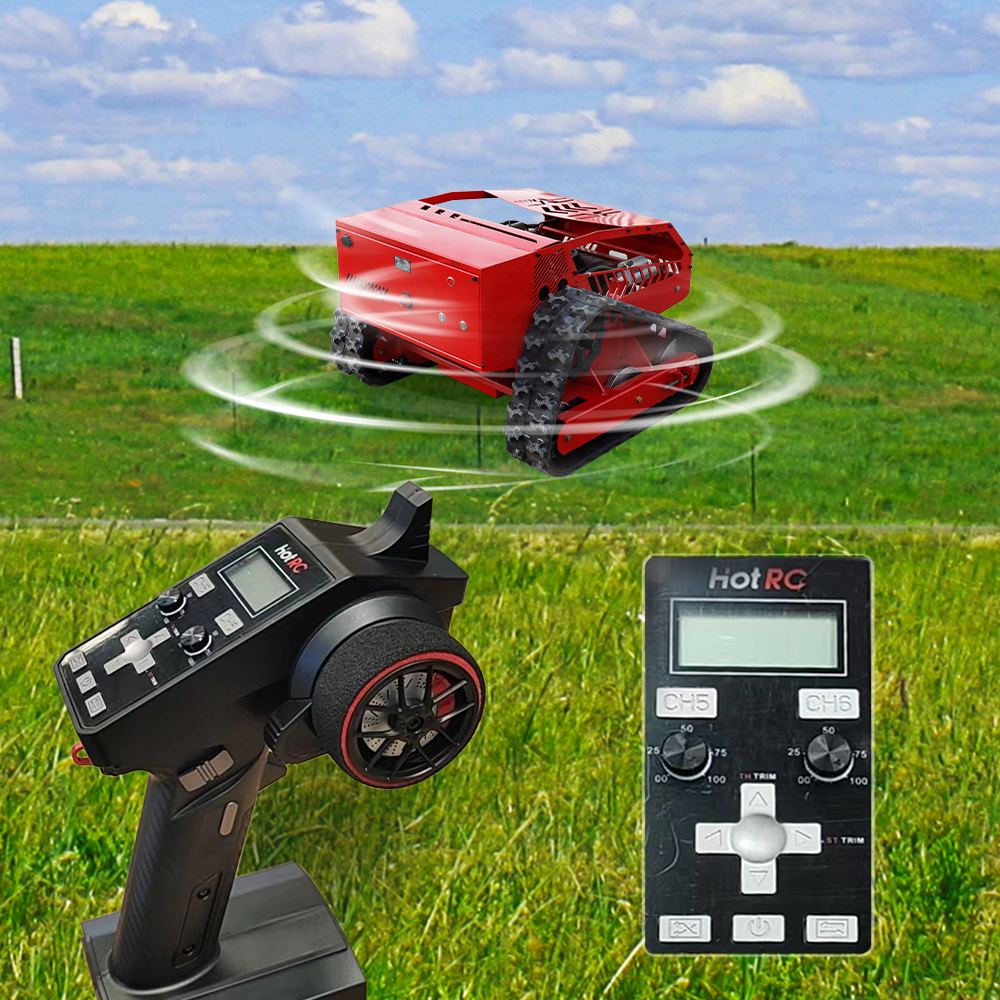

(2) Turn on the power key switch of the machine, pull the right lever back and hold it down, then press the switch key of the remote control to turn on the remote control.
(3) "DiDi" will appear when the remote control is turned on, indicating that the machine matches the remote control normally.
(4) Engine start;
a> Release the brake on the right side of the engine (disconnect the ignition switch at the same time);
b> Turn the left throttle to the end counterclockwise (to open the engine throttle at the same time);
c> Pull the pull rope of the handle plate firmly to start the engine;
d> After starting the engine, adjust the throttle to the appropriate speed in time;
|

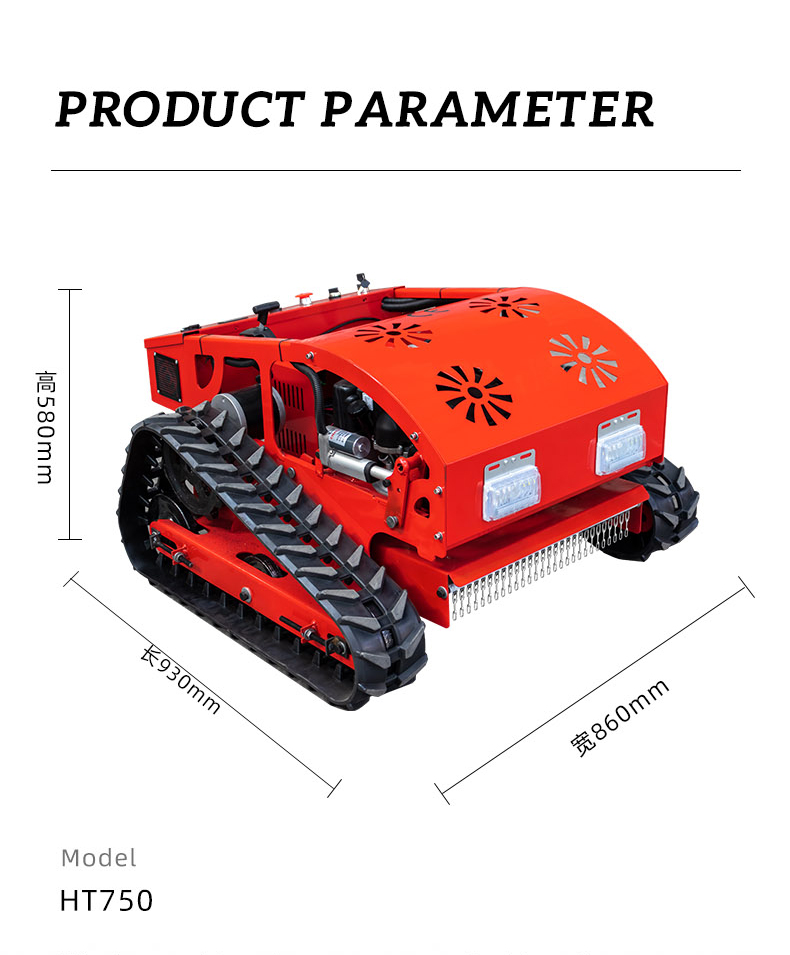

MODEL: MGM-750 |
|||
|
Cutting width |
550mm |
Start mode |
Hand pull/Button start |
|

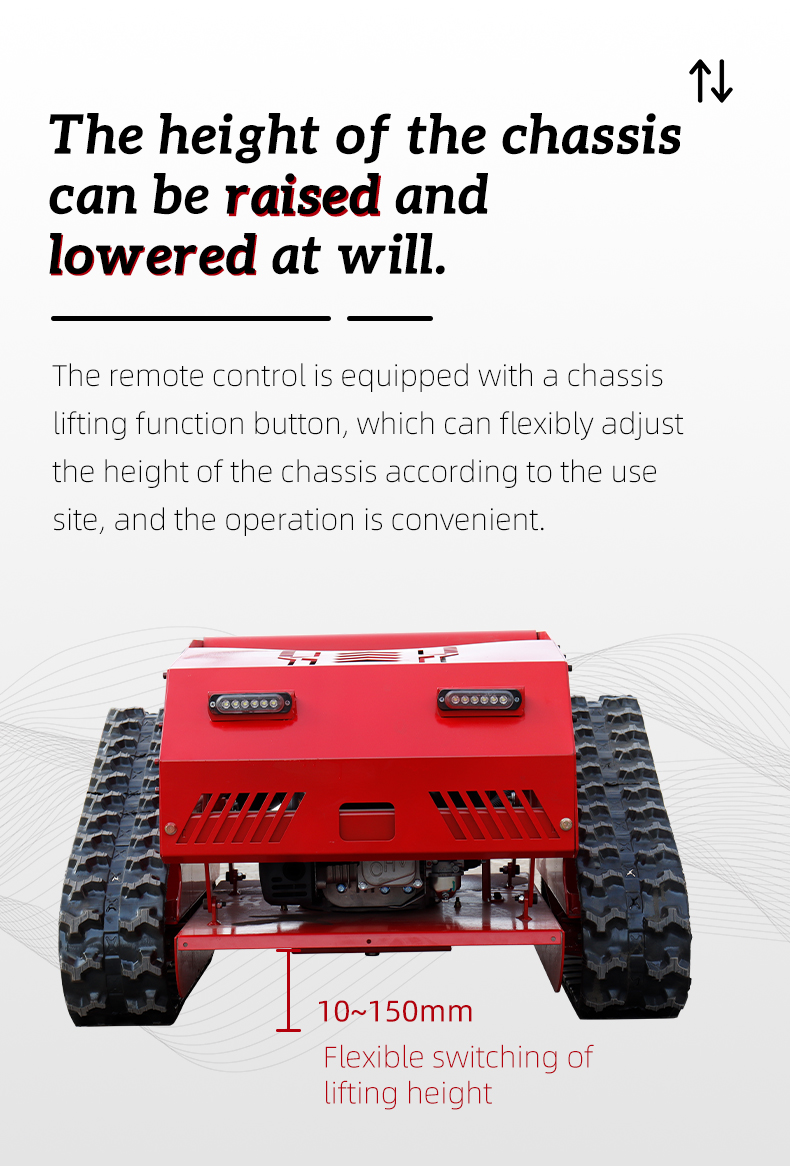

Height adjustment method |
Remote control operation |
Charging mode |
Engine self charging system |
|

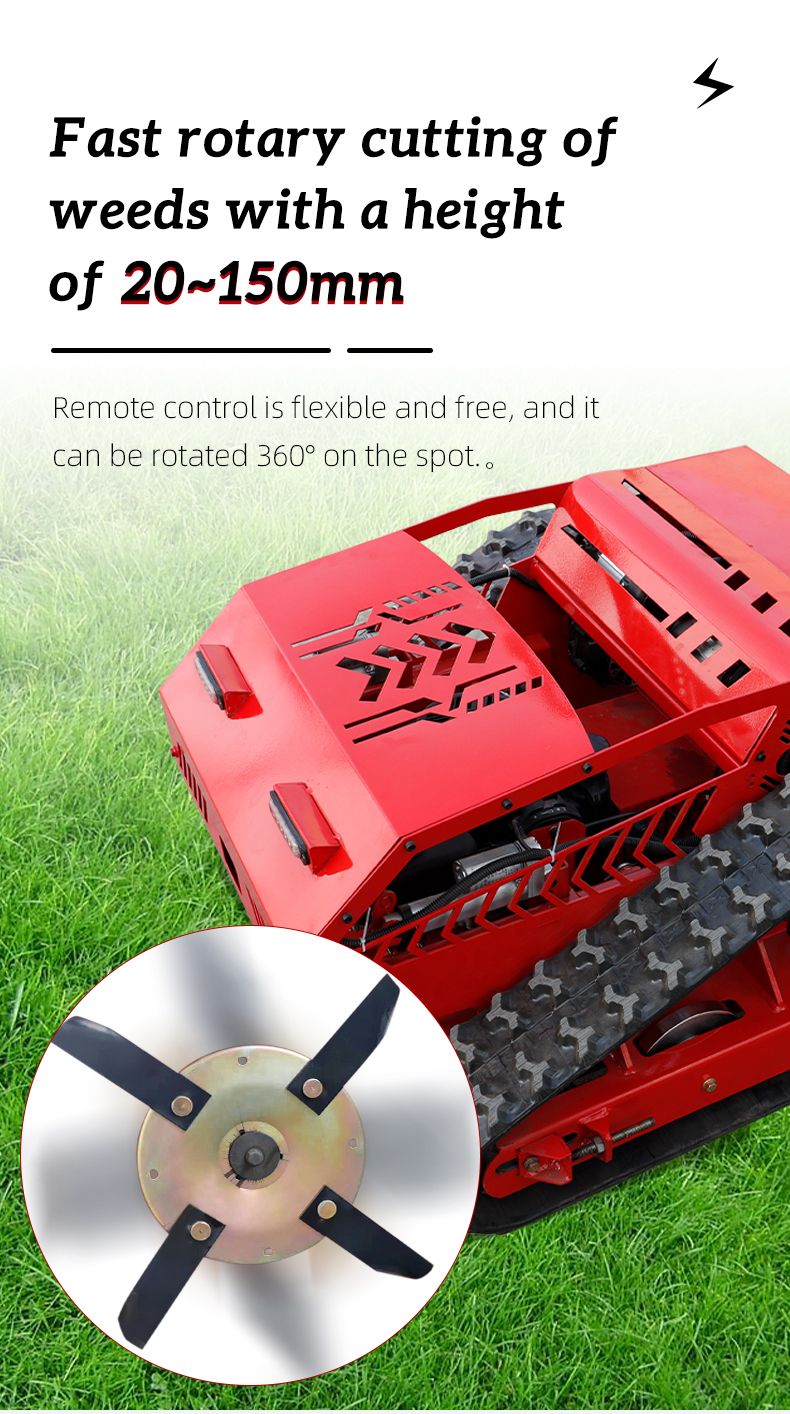

Stubble height |
20-150mm |
Operation mode |
Remote control operation |
|
Walking speed |
0-4km/h |
Remote control distance |
0-300m |
|
Working slope |
0-45° |
Mowing efficiency |
0-2200㎡/h |
|
Product size |
915mm*935mm*560mm |
Net weight |
175kg |
|
Packaging size |
970mm*990mm*610mm |
Packaging weight |
195kg |
|

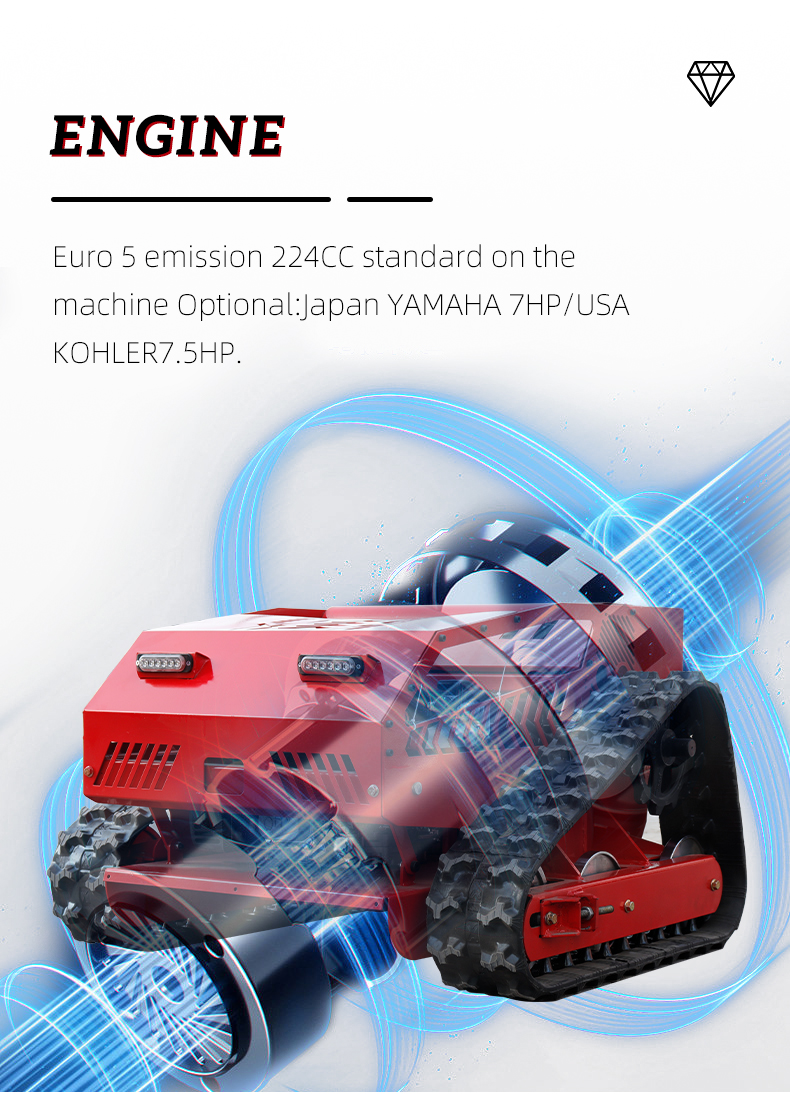

Engine |
LONCIN224CC Engine/KOHLER200 Engine |
|
|
